iDirect satellite communications Netmodem

STAR COM satellite communications terminal using iDirect Netmodem  II

Uploads of 128k/256k/512k and 1024k.   Downloads of 512k/1024k/2048k and 4096k.

Designed to use with Internet Cafés for 5, 10 and 20 PC’s and VOIP

New high quality VoIP services have been proven to work well with all these systems

Simplicity

  • One-Box Solution (Satellite Modem, IP Router, TCP Optimization, QoS, Star Com Encryption)
  • Centralized Management (Software Upgrades, Configuration Changes)

Most Reliable Solution over Satellite

  • First to implement Turbo Product Code (TPC)
  • Forward Error Correction 10-9 or Better Bit-Error-Rate Guarantee
  • Uses 50% lower power (Eb/No) when compared to RSV
  • Auto Power Adjustment provides reliable connectivity even in bad weather conditions
  • The ultimate result is more TCP throughput Performance
  • Highest TCP/IP throughputs in the industry (9.1 Mbps downstream - 4.2 Mbps Upstream
  • TCP/IP is very sensitive to BER. TPC Encoding ensures 10-9 BER, providing fiber like reliability Technological Superiority Allows Use of Much Smaller Antenna Sizes

TCP Performance Improvements

  • Mitigates the effects of latency over satellite
  • TCP Acceleration - Reduces overall bandwidth requirement, while enhancing performance
  • 3-Way Handshake Acceleration - Provides better HTTP performance
  • Local DNS Caching - More User Satisfaction



Quality of Service

  • Traffic Prioritization based on multiple parameters (Source/Destination IP Address, Source/Destination Port Number, Protocol Type)
  • Class Based Queuing - Assign percentage of bandwidth to each class
  • Rate Limiting - Allocate only bandwidth that is needed
  • Committed Information Rate - Dedicate bandwidth as required (Static and Dynamic)
  • Easily Support VoIP and VTC
  • TDMA/iSCPC Turbo Code FEC
  • L-Band (C/Ku/Ka Band) Variable Data Rates
  • CIR/Dynamic CIR QoS/Firewall
  • IP Router VLANs
  • DNS Caching DHCP/NAT
  • TCP/Web Acceleration RTTM Features
  • 3DES Chipset Onboard Mobile Mode

Possible Customer Profiles

  • Financial Services: Access Secure Transactions for Affiliated Sites
  • Credit Card: Access Secure Transactions for Financial Transactions at Each Site
  • Oil & Gas: Transmission of Real-time Data & Voice From Field and Offsite Drilling Rigs
  • Military: Provide Army Units Maintaining Force Readiness With Access to Stock Databases Worldwide
  • Medical: Provide Communication of Real-time Data for
    Emergency Personnel in Field
  • Insurance: Provide Solution That Delivers Immediate Connectivity at Catastrophic Sites for Insurance Claims Processing and Voice Communications
  • Internet Service Provider: Provide High-Speed Internet Access with SLAs.
    Provide value add services such as WiFi.
  • SOHO & SME

SATELLITE BEAM COVERAGE AREAS:

Currently available on AM-22  (extended ku-band BUC), but will shortly become available on the  Hellasat beam with W3A and Sesat2 to follow....

Express AM22 satellite coverage map - Africa / Middle east beam
AM-22 service available now with extended Ku-band BUC.

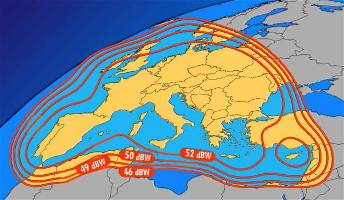

European satellite beam coverage map
Hellesat - service available soon

Express AM22 satellite beam coverage map - stearable spot
AM-22 service available now with extended Ku-band BUC.

DETAILED TECHNICAL SPECIFICATIONS FOLLOW:

TECHNICAL SPECIFICATION FOR NETMODEM II PLUS

NETWORK CONFIGURATION

Network Topology: Star
Multiple Access  TDM (Downstream)
D-TDMA (Deterministic TDMA)
Multi-Frequency TDMA (Upstream)
Configurable number of Upstream
Carriers per Downstream
Configurable frame length
(number of slots/frame)
Channel Rates Outroute: 11.5 Mbps or 5.75 Msps
Inroute: 5.75 Mbps or 2.875 Msps
Channel Spacing 1.2
Modulation  QPSK
P Data Rates Outroute: 64kbps - 9.1 Mbps
Inroute: 64Kbps - 4.2Mbps
(Max. of 1 Mbps @ 0.66 FEC and
4.2 Mbps @ 0.793 FEC)
FEC Outroute: Turbo Product Coding (TPC)
Rate 0.793
Inroute: TPC Rate 0.793 or TPC Rate 0.66
Eb/No 4.6 Eb/No for 10-9 Quasi Error Free
@ 0.793 FEC
5.4 Eb/No for 10-9 Quasi Error Free
@ 0.66 FEC

INTERFACES

SatCom Interfaces Type-F, 950 - 1700 MHz
RxIF: Type-F, 950 - 1700 MHz
TVRO: Type-F, 950 - 1700 MHz


Data Interfaces		 LAN: RJ45, 10/100 Ethernet
RS-232: RJ45 (for GPS or Console
connection)

Protocols Supported		 TCP, UDPr, ICMP, IGMP, RIP Ver2,
Static Routes, NAT,
DHCP, DNS Caching, cRTP

Security		 Security 3DES Link Encryption (optional)
Traffic Engineering Traffic Engineering QoS (CBWFQ), CIR, Rate Limiting,
Dynamic Allocation

MECHANICAL / ENVIRONMENTAL

Size W 11.75" x D 10.50" x H 1.75"
(W 29.9 cm x D 26.7 cm x H 4.5 cm)
Weight 7 Ibs (3.18 Kg)
Operating Temperature 0 to 50 C (+32° to +122 F)
Input Voltage 100-250 VAC Universal Input,
2A Max @ 100VAC


TECHNICAL SPECIFICATION FOR SWIFT TRANSPORTABLE UNIT

NETWORK CONFIGURATION - SAME AS NETMODEM 11 PLUS

TRANSPORTABLE UNIT

Antenna Size Antenna Size KU-Band 1.2M SD Dish
LNB LNB DRO
Block-Up Converter (BUC) 4W

MECHANICAL / ENVIRONMENTAL

Size W 19" x D 11.6" x H 13.5"
Weight 12 Ibs. (5.4 kg)
LAN Port RJ-45, 10/100 Base - T

SWIFT DEPLOY CRATES

Size Cable Reel Case: 24x26x25
ODU Case: 21x29x17
Modem Rack Case: 20x20x10
Reflector Case: 52x12x31
Tripod Mount Case: 56x17x16
Weight Cable Reel Case: 80 Ibs.
ODU Case: 56 Ibs.
Modem Rack Case: 79 Ibs.
Reflector Case: 77 Ibs.
Tripod Mount Case: 103.5 Ibs.
