Problem in pointing

(Read 3872 times)
Ex Member
Ex Member


Apr 21st, 2007 at 6:51pm
I don't understand why I shouldn't lock to the outbound having done all the settings on the Prodelin 2.4M antenna and pointing to IS905 from my geo location 3.11N 43.65E gives 13deg elevation and 268deg azimuth and using 22.6deg offset.
I am getting 4V only on the iSite, not more.
Can someone help?

SMP07.
Back to top
« Last Edit: May 10th, 2007 at 9:18am by Admin1 »

IP Logged

Eric Johnston
YaBB Moderator
*****
Offline


Personal text from Profile,
Options, Top line

Posts: 2109
Reply #1 - May 4th, 2007 at 7:51pm

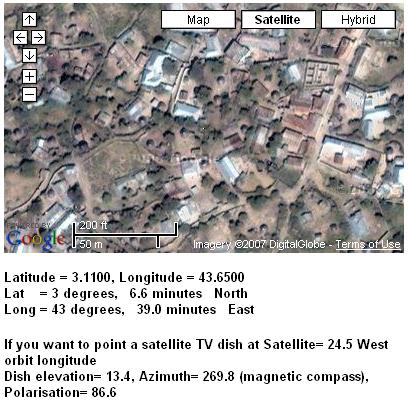

Using http://www.satsig.net/maps/lat-long-finder.htm
...
I suspect that the problem is the low elevation angle.

First set your dish so that the front face is vertical.  The beam elevation is then 22.6 deg.

Try to tilt the top of the dish forwards by 9.2 deg  (Note 22.6-9.2=13.4)  If you dangle a nut on a string from the top of the dish down the front then the distance at the bottom should be about 40 to 42cm.

The bottom back edge of the dish and the pole will be very close and if your pole has added diagonal bracing then you may have problems.   Hopefully it will just be possible.   If you really can't get the bottom of the dish back far enough, because the bottom of the dish hits the pole or steelwork, then you need to change the steelwork or remount the dish upside down.  In this case start with the dish front face vertical with the feed arm at the top.  The beam is now minus 22.6 deg downwards into the ground.  Tilt the dish top backwards by 22.6 deg.  The beam is now horizontal towards the horizon and beam elevation is zero.
Now increase elevation a further 13.4 deg.  Beam elevation is now 13.4 deg.
wxw
Best regards, Eric.
Back to top
« Last Edit: May 10th, 2007 at 9:19am by Admin1 »

IP Logged

Ex Member
Ex Member


Reply #2 - May 7th, 2007 at 2:06pm
Yes. that should work.

Arnold IRO
Communications Specialist
DynCorp International-DIFZ
Back to top


IP Logged

Ex Member
Ex Member


Reply #3 - May 7th, 2007 at 7:23pm
IF THE PROBLEM PERSIST TRY LOCKING YOUR DISH WITH A SPECTRUM ANALYZER. CALCULATE THE ELEVATION AS IT WAS STATED BY ERIC.MAKE SURE YOU GET A LOCK WITH A SPECTRUM ANALYZER.
CONNECT YOUR MODEM AND SEE IF THERE WILL BE A RX LOCK, IF THERE IS STILL NO RX LOCK REPOST FOR FURTHER TROUBLESHOOTING TIPS ON THE MODEM.
