HX 50 Tallil, Iraq

(Read 7422 times)
Ex Member
Ex Member


Jun 20th, 2009 at 6:34pm
Hello everyone!  I am attempting to set up a new site here in Iraq; I am being told that my settings are correct from Wafa. But, they are insisting I am not pointing it correctly!  I am using a SUUNTO TANDEM compass and clinometer to check my Azimuth/Elevation using the values from the calculator on WaFa's site/my GPS co-ordinates (from my Tom-Tom GPS).

I've checked rechecked and swapped COAX cables (with the modem powered off of course)  But now something weird has started to happen-- no matter where I point the dish, I get a 15 sig strength.  I was intrigued, so I powered off the modem, disconnected the COAX and then powered the modem back on-- the sig strength is still reading 15!

Everything is disconnected at this point and I have been struggling with this connection for 3 days.  Like I said before, WAFA has seen my screenshot and they say the settings are correct, but I am not pointed..

Believe me I went 10 degrees in each direction, spent about 10 hours trying to get past 15-29 (to include polarizing the BUC) and I am pointed in the same general direction as other data sats in my area.   Are there any other SATS I can aim at?

If anyone can help out it would be appreciated, I can send pics of everything- installation/screenshots.  My e-mail link is to the left!

Thanks!

Chris
Back to top


IP Logged

Ex Member
Ex Member


Reply #1 - Jun 20th, 2009 at 6:44pm
There are no other sats that will help you out, your modem needs to see a WAFA signal before the level will get above 29. Two most common reasons are (a) incorrect satellite parameters loaded into the modem, and (b) simple inexperience at obtaining a signal. It's a pinpoint in the sky, so just cuz you're pointing in the same general direction as others around you means nothing. Besides, they may not even be getting service off the same satellite.

Start by posting the satellite parameters given to you by WAFA, and the Az/El/Pol angles as observed on the gradient scales on your antenna bracket. Photos would help greatly.

//greg//
Back to top


IP Logged

Ex Member
Ex Member


Reply #2 - Jun 20th, 2009 at 9:18pm
Thanks USN!

I'll Start by showing my params/AZ/ELE/POL:

[IMG]http://i41.tinypic.com/22gx85.jpg[/IMG]

[IMG]http://i41.tinypic.com/2w4eahg.jpg[/IMG]

I'll take more pic in the morning, Its almost midnight here!

Thanks again!

Chris
Back to top


IP Logged

Eric Johnston
Senior Member
***
Offline


Personal text from Profile,
Options, Top line

Posts: 2108
Reply #3 - Jun 21st, 2009 at 10:27am
Check you have the cable from the LNB (small module on side arm) connected to SAT IN on the HX 50 modem.  Follow the cable physically from end to end to make sure you have not got the cables crossed over.

Remember to power off at the mains wall switch before either disconnecting or connecting the coaxial cables.

The receive side should work and dish pointing should be possible with just the LNB cable connected at both ends and the transmit cable disconnected at both ends.

Set your polarisation name according to told written/verbal instructions from WAFA, not by the "Vertical name" it says on the configuration display, which may or may not be correct.  The config display text is of no consequence as your polarisation is set manually by you at the antenna, not by the modem.

Having set the named polarisation apply the polarisation adjustment angle.

Best regards, Eric.
Back to top


IP Logged

Ex Member
Ex Member


Reply #4 - Jun 21st, 2009 at 1:22pm
OK, I've got a bigger problem now.... The modem will not change from 15 sig strength!  I pointed the dish at a wall and it still came up 15...

Earlier (yesterday) the sig would go from 1-20-28/29 but now it is stuck at 15 (since last night no matter where I point the dish)...

I let it sit over night without anthing attached and here is what I got this morning when I hooked just the power up with the LAN attached...

[IMG]http://i39.tinypic.com/6z7uz9.jpg[/IMG]

I've been online with WaFa and they keep asking me if I have the cables hooked up... When I do hook just 1 (LNB) it says 15, when I hook up both, it says 15.. I did a config reset thru hyperterminal, but all that was was clearing the settings from the RPR, I re-input the setting again and it still reads 15!!

I ALWAYS DISCONNECT POWER BEFORE DISCONNECTING/CONNECTING THE COAX.

Is there a way to flash this with Firmware or do a "hard" reset to clear this problem??

-Chris
Back to top


IP Logged

Eric Johnston
Senior Member
***
Offline


Personal text from Profile,
Options, Top line

Posts: 2108
Reply #5 - Jun 21st, 2009 at 4:39pm
You say "did a config reset thru hyperterminal"

What command did you use to do this "config reset " ?

The reset to factory default may be a different command.  If you need the reset to factory default command follow advice first from WAFA (1st level tech support for the HX network), or possibly from Bentley Walker (2nd level tech support for the HX network).

Best regards, Eric.
Back to top


IP Logged

Ex Member
Ex Member


Reply #6 - Jun 22nd, 2009 at 10:40am
hi
in hands
now
awaiting Chris' updates to us
Back to top


IP Logged

Ex Member
Ex Member


Reply #7 - Jun 22nd, 2009 at 10:41am
I believe the command was "ch" it cleared the settings for the modem as far as filling out what came on my RPR form.  I re-input the information from my RPR form and the modem still reads 15 with no COAX connected.

-Chris
Back to top


IP Logged

Eric Johnston
Senior Member
***
Offline


Personal text from Profile,
Options, Top line

Posts: 2108
Reply #8 - Jun 22nd, 2009 at 5:46pm
The command to do "reset to factory default" is not the command you used.

Seek advice from WAFA regarding if you should do reset to factory default.  They will tell you the command to use if they say it is needed.

I'm not giving you the command in case it permanently deletes something important.  Do only what WAFA say.  It is their responsibility to fix your problem.

Best regards, Eric.
Back to top


IP Logged

Ex Member
Ex Member


Reply #9 - Jul 3rd, 2009 at 10:17am
I got my Horizon Sat Meter and here is the best I have been able to get..

[IMG]http://i42.tinypic.com/dbnqlj.jpg[/IMG]

240 SPAN

[IMG]http://i44.tinypic.com/33o5j6o.jpg[/IMG]

[IMG]http://i41.tinypic.com/2l9gsco.jpg[/IMG]

I get up to 85 on some carriers when I am doing my sweep.  I have yet to be able to attain a lock on any of them.
 I've tried 2 different cables, neither of them ground out and I get the same results. any ideas?
Back to top


IP Logged

Ex Member
Ex Member


Reply #10 - Jul 3rd, 2009 at 11:46am
Please liaise with us. We are the ISP provider for HX Bentley Walker we can help you right away, first thing is we need to check your config, my support team here are ready and also back Wafa as well but right now we need to get you up and running, I will send you an email directly
Back to top
« Last Edit: Jul 4th, 2009 at 2:09am by Admin1 »

IP Logged

Eric Johnston
Senior Member
***
Offline


Personal text from Profile,
Options, Top line

Posts: 2108
Reply #11 - Jul 4th, 2009 at 1:17pm

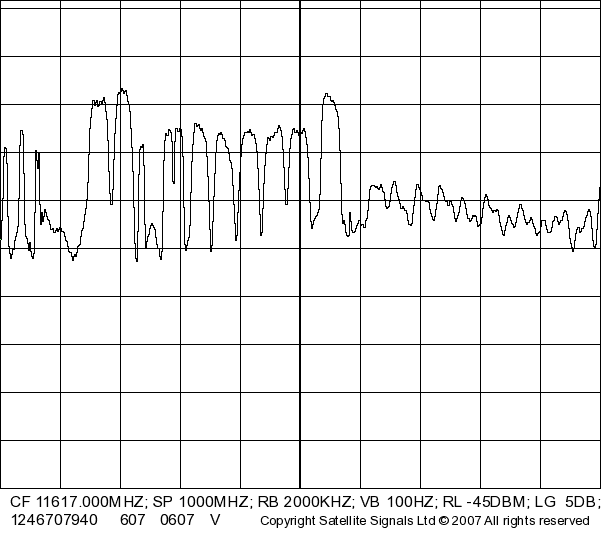

I have found the spectrums shown on the two Horizon meter images above. See below:
...
This is from W3A satellite at 7 east, vertical polarisation.

If you want to find W6 satellite at 21.5 east, you need to repoint the antenna 9.5 deg higher up and 17 deg to the left.

References:
Dish pointing in Iraq
On-line satellite spectrum analyser (in the UK)

Best regards, Eric.
Back to top


IP Logged

Ex Member
Ex Member


Reply #12 - Jul 9th, 2009 at 3:28pm
The site is up!!  Thanks for everyone's help!!  The only problem I have now is that I have a huge amount of dropped transmissions and I cannot make Skype calls sucessfully.  Below are my ranging stats/general stats.

Ranging Stats

------------------------------------
Network Time: THU JUL 09 13:14:09 2009
------------------------------------
State: Not Currently Ranging

Previous Ranging Info [1]
Previous Ranging Info [2]
Previous Ranging Info [3]
Previous Ranging Info [4]
Previous Ranging Info [5]
--------------------------------------------------------------------------------


Successful Rates      | Unsuccessful Rates    | Failed Rates          |
----------------------+-----------------------+-----------------------+
256k Turbo Code 1/2
256k Turbo Code 2/3
256k Turbo Code 4/5

--------------------------------------------------------------------------------


NOC-Sat Delay (AnE).......... 2538682   Remote-Sat Delay (BnD).... 2503576
Remote Distance To Sat (D)... 998695    SFNP Interval............. 3600000
Ranging ID................... 16        Network Ranged On (L:H:F). 021:E:1421
NOC ID....................... 0

--------------------------------------------------------------------------------


Rate......................... 256k Turbo Code 1/2

Available.................... 1         Ranging Reason............. 9
Ranging Sessions Required.... 5         Minimum EsNo............... 28
Target EsNo.................. 48        SwitchUp EsNo.............. 55
Initial Power Setting........ 0         Final Power Setting........ 158
Initial Received EsNo........ 125       Final Received EsNo........ 50
Initial Received C/No........ 666       Final Received C/No........ 591
Outroute SQF................. 76        Outroute C/No.............. 756
Initial Timing Offset........ 621       Final Timing Offset........ 467
Power Control Type........... PWM       Estimated Rate............. No
Coding Type.................. BCH       Inroute Group ID Ranged.... 1
Timestamp.................... JUL 09 13:13:37 (GMT) 2009


Rate......................... 256k Turbo Code 2/3

Available.................... 1         Ranging Reason............. 0
Ranging Sessions Required.... 0         Minimum EsNo............... 54
Target EsNo.................. 64        SwitchUp EsNo.............. 0
Initial Power Setting........ 0         Final Power Setting........ 103
Initial Received EsNo........ 125       Final Received EsNo........ 64
Initial Received C/No........ 666       Final Received C/No........ 605
Outroute SQF................. 76        Outroute C/No.............. 756
Initial Timing Offset........ 0         Final Timing Offset........ 0
Power Control Type........... PWM       Estimated Rate............. Yes
Coding Type.................. BCH       Inroute Group ID Ranged.... 1
Timestamp.................... JUL 09 13:13:38 (GMT) 2009


Rate......................... 256k Turbo Code 4/5

Available.................... 1         Ranging Reason............. 0
Ranging Sessions Required.... 0         Minimum EsNo............... 77
Target EsNo.................. 87        SwitchUp EsNo.............. 0
Initial Power Setting........ 0         Final Power Setting........ 74
Initial Received EsNo........ 125       Final Received EsNo........ 87
Initial Received C/No........ 666       Final Received C/No........ 628
Outroute SQF................. 76        Outroute C/No.............. 756
Initial Timing Offset........ 0         Final Timing Offset........ 0
Power Control Type........... PWM       Estimated Rate............. Yes
Coding Type.................. BCH       Inroute Group ID Ranged.... 1
Timestamp.................... JUL 09 13:13:38 (GMT) 2009

General Stats

------------------------------------
Network Time: THU JUL 09 13:21:35 2009
------------------------------------

--------- Allocated Inroute Message Statistics --------
Stream Messages ACK'd......... 1248170     Stream Messages NAK'd....... 3374
NonStream Messages ACK'd...... 9680        NonStream Messages NAK'd.... 700

Aloha Starts.................. 13036       Ranging Starts.............. 1
WakeUp Aloha Starts........... 0           DNCC Busy................... 0

Allocated Stream Bytes........ 227537688   Used Stream Bytes........... 79383999

------------- General Transmit Statistics -----------
Tx Superframes Count.......... 486096      Tx Superframes Size......... 48147096

No Frame Information.......... 176         Not Sync'd to Network Timing 38
No Receive Demod Lock......... 21          No FLL Lock................. 609
No Transmit Synth Lock........ 0           Miscellaneous Problems...... 221

----------------------+---------+----------+----------+----------+----------+
                     |      CBR|Priority 0|Priority 1|Priority 2|Priority 3|
----------------------+---------+----------+----------+----------+----------+
Packets in AQM Queue           0|         2|         0|         0|         0|
AQM Queue Size                 0|       173|         0|         0|         0|
Packets Received               0|    316043|     19778|    150275|         0|
Bytes Received                 0|  29509123|   3380055|  15558819|         0|
Packets Sent and Acked         0|    315690|     19755|    150213|         0|
Encoded Queue Flush            0|        40|        11|        22|         0|
Latency > Thresh Drops         0|       175|        65|       122|         0|
Pkts Latency > 2000 ms         0|       270|       340|      2895|         0|
Pkts Latency > 10000 ms        0|       215|        66|       285|         0|
Latency Last Value (ms)        0|      1080|        40|       550|         0|
Latency High Water Mark        0|     59690|     59090|     58490|         0|
----------------------+---------+----------+----------+----------+----------+
