Skew question

(Read 20770 times)
Ex Member
Ex Member


Sep 7th, 2012 at 7:29am
I'm a bit confused over a polarisation matter. Heres the scenario.

I commisioned two vsats the other day.

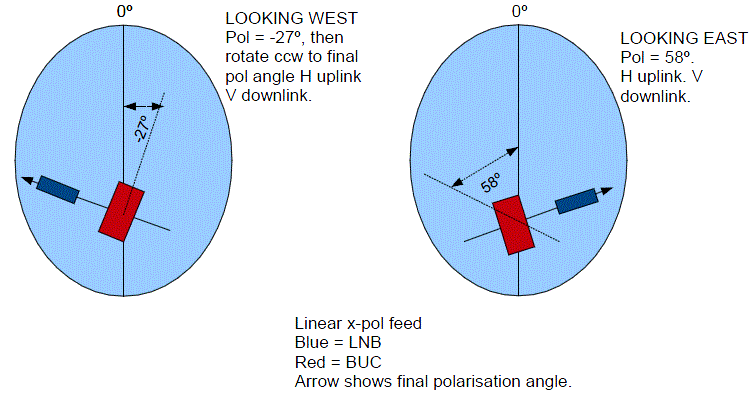

One Looking East. The other looking West. Both in the Southern Hemi.

I got the pol skew angle from the Service Provider. But what I thought I set right for the East looking dish didn't make sense.

I would like to send an illustration of what I mean, its a little complicated to explain. How do I upload one?
...

From what I know about pol, If in the southern Hemi, turn CCW for an east looking dish (looking into reflector), and CW for west. Then +- 90 if you need to.
Back to top
« Last Edit: Sep 8th, 2012 at 9:39pm by Admin1 »

IP Logged

Ex Member
Ex Member


Reply #1 - Sep 7th, 2012 at 1:52pm
What you describe is possible, assuming the two installations were on two different satellites. A skew angle of zero is when the dish longitude and satellite longitude are identical. This is also the point where azimuth is 90. And for me it's easier to understand skew if I'm behind the dish. If your azimuth is less than 90 degrees, you're pointing left. Skew would be CCW (as viewed from behind). If your azimuth is more than 90 degrees, you're pointing right. Skew would be CW. This is true regardless of hemisphere.

That said, it's important is to input the correct value (+ or -) of east and west latitude, north and south longitude into the Az/El/Pol formulas. Relative to east/west/north/south inputs, a (+) value where a (-) value should be will result in a pointing error, as will a (-) value where a (+) value should be. So the discrepancy might also be as simple as human error.

//greg//
Back to top


IP Logged

Eric Johnston
Senior Member
***
Offline


Personal text from Profile,
Options, Top line

Posts: 2108
Reply #2 - Sep 8th, 2012 at 9:27am
To put picture in your message at this forum you may:
1. Upload the image to your own server or to a public image server.
2. When writing your message do this {img}http://www. example.com/myimage.jpg{/img}
Use square brackets, not squiggly ones.
Alternatively send your image to me by email eric@satsig.net and say which message it is to go with.

Regarding applying the polarisation adjustment amount, if you are in the southern hemisphere:
For satellites to the north west the polarisation adjustment amount is anticlockwise, as viewed facing towards the satellite in the sky.
For satellites to the north east the polarisation adjustment amount is clockwise, as viewed facing towards the satellite in the sky.
For the satellite due north the polarisation adjustment amount is zero.

If you are near the equator, the polarisation adjustment amount required may be large, approaching +/-90 deg.
+ means clockwise, while facing towards the satellite in the sky.

See: http://www.satsig.net/maps/lat-long-finder.htm
wxw
...

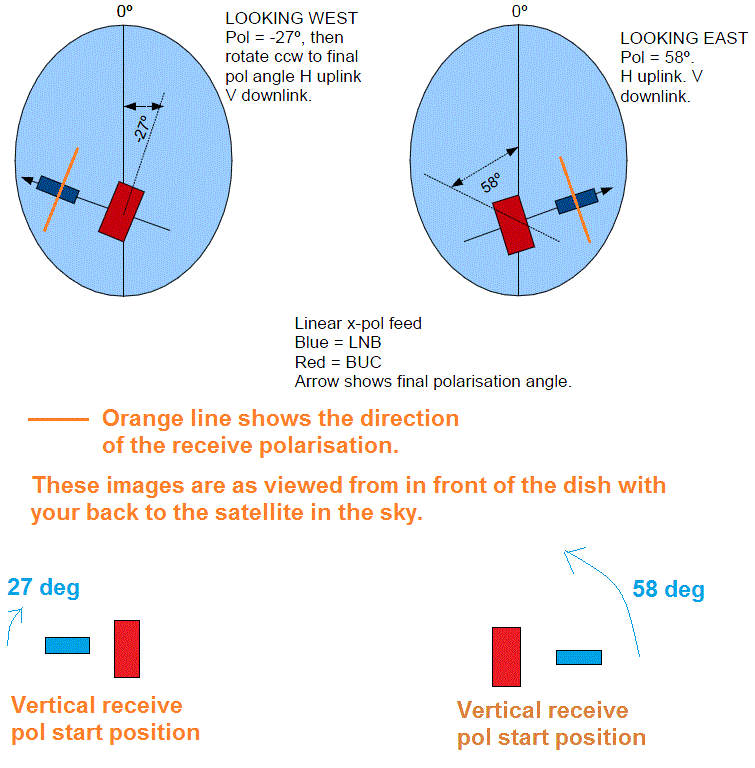

The west facing antenna looks good to me.  The east facing antenna needs the LNB lifting up a bit more so as to make the total movement amount 58 deg from the starting position which is with the LNB sticking out sideways = vertical receive name.

If you are setting up vertical receive polarisation then start with the LNB arm aimed sideways **.

This is vertical polarisation LNB waveguide: ...

If applying the adjustment amount causes the LNB to hit metal then start on the other side.

I prefer to always consider the view towards the satellite in the sky.  It is then quite obvious that, in the southern hemisphere,  for satellite to the north west you turn the feed anticlockwise and clockwise for a satellite in the north east.

Start with the correct polarisation name.

Then apply the adjustment amount.

Note that the scale readings may start at 0, 90, 180 and go forwards or backwards. Ignore the numbers and simply count the required amount along the scale.  If no scale, use an inclinometer placed sideways across the BUC/LNB and again count the amount of movement, not necessarily the scale reading.

What are your pointing angles as per
http://www.satsig.net/maps/lat-long-finder.htm ?

** this does not apply to white Hughes HX Universal LNB PN PN 1501882-0002 integrated with OMT, where the receive polarisation is the direction of the LNB cable connector.

Best regards, Eric.
Back to top
« Last Edit: Sep 9th, 2012 at 10:27pm by Admin1 »

IP Logged

Admin1
YaBB Administrator
*****
Offline


Personal text from: Profile,
Options, Top line

Posts: 865
Reply #3 - Sep 11th, 2012 at 10:24am
...

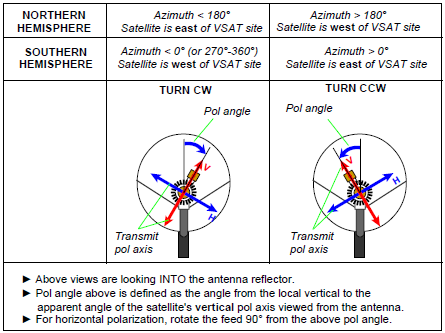

Note in the above table:
The red arrow V is the BUC transmit polarisation.
The blue arrow H is the LNB receive polarisation.

One of each pair of green lines should be deleted from the diagram.   The earth station cannot be transmitting on both polarisations simultaneously.

The view is taken facing into the dish with your back to the satellite in the sky.

The third line of text is best ignored to avoid confusion.  The "pol angle" is the amount of CW or CCW adjustment angle required.
The "pol angle" is the apparant angle between the  local vertical and tyhe sagtellite pitch axis (parallel with the earth's axis).  To start discussing the satellites polarisation is confusing.  If the satellite transmits vertical (parallel with the earth's axis) it is called vertical name when it arrives at the earth station.  The earth station receive polarisation adjustment amount may be as much as +/-90 deg either way, CW or CCW.
In the last line of text where is says horizontal, this refers to the BUC transmit polarisation.

...

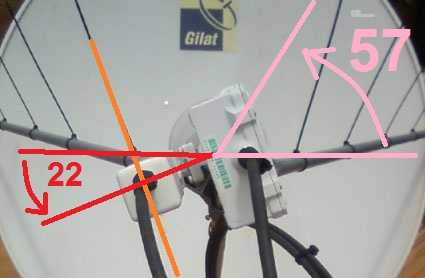

In this picture above the receive polarisation is shown by the orange line.
The LNB was intially at the side (true nominal vertical receive polarisation) and has been adjusted downwards by 22 deg (wrong amount), see red lines.
The required adjustment amount is 57 deg so the LNB could be pushed downwards further or, alternatively start again on the other side, and push the LNB upwards by an amount of 57 deg as shown in pink.
Back to top

WWW
IP Logged

Ex Member
Ex Member


Reply #4 - Aug 22nd, 2013 at 12:51pm
I just want to return to this topic for a sec. and try to understand something more.

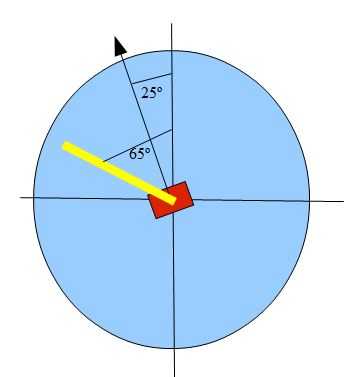

I have a skew of +65, calculated from Satsig (and the same from others). I'm South of the equator so I'm pointing East. Now I'm consistently getting max Vertical Xpol at about +25. The diagram shows what I mean. Theoretically I should be a bit more CCW at +65. What do you think?

Note: Andrew feed with xpol omt. Lnbs on both feed ports receive only. DVBS carrier using MER function on Signal Strength Meter to peak.

Back to top



IP Logged

Eric Johnston
Senior Member
***
Offline


Personal text from Profile,
Options, Top line

Posts: 2108
Reply #5 - Aug 22nd, 2013 at 1:21pm
Since 25 + 65 =90 degrees, I guess there is not problem at all.  Either figure can be correct, depending on where is the start position and which way you look at the feed.

My satsig definition is "The amount of adjustment angle required, as viewed while standing behind the dish and facing forwards towards the satellite in the sky, positive is clockwise".

If you are in the southern hemisphere and facing north east then you need to turn the feed by an amount clockwise, as viewed while standing behind the dish and facing forwards towards the satellite in the sky. Remember to start with true vertical receive polarisation, if that is what you want, as you would if wanting vertical polarisation on a satellite high up at due north.

For a VSAT with BUC and LNB on a filter arm, the starting position for vertical receive polarisation is with the LNB side arm sticking out sideways. Either side is vertical receive polarisation. Choose one side if the other results in the LNB hitting metal when the adjustment is applied.

Vertical receive polarisation LNB input waveguide ...

If you have a spectrum analyser, adjust for minimum xpol interference level. The wanted signal will have a broad ill-defined maximum, the cross pol signal will have a sharp narrow null. Go for the middle of the null, about 2 deg wide.

If co-pol and x-pol are the same level you have 45 deg error.

Best regards, Eric.
