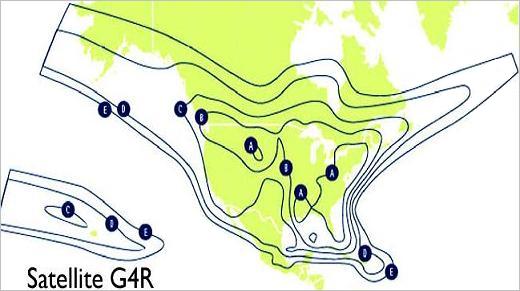

GALAXY 4 R Satellite - Ku band Horizontal polarisation downlink beam coverage map

The Galaxy 4R satellite was launched on the Ariane rocket on 18 April 2000,

Geostationary orbit location: 261 deg east or 99 deg west. Fuel for 15 years.

Beacons:
C band:   4.198125 GHz  Linear (H)  4.199325 GHz Linear (H)
Ku band: 11.701 GHz  Linear (V)     12.195 GHz  Linear (H)

Transponder frequency bands and centre frequencies:
C band:   24 transponders      5925 - 6425 MHz       3700 - 4200 MHz
Ku band: 24 transponders:   14000 - 14500 MHz   11700 - 12200 MHz
Horizontal:   11720, 11760 etc     14020, 14060 etc
Vertical:       11740, 11780 etc     14040, 14080 etc
