Recommended microwave spectrum analysers for sale

Anritsu MS2711B spectrum analyser

Covering the 100 kHz to 3.0 GHz frequency band, the MS2711B Handheld Spectrum Analyzer featuring a pre-amplifier (standard), a battery-operated, field-proven design so powerful, yet so small that it fits into your backpack.

Its exceptional performance combined with ease-of-use and broad functionality makes it an ideal solution for field environments and applications that require mobility such as site surveys and on-site system test.

More details of this and similar refurbished or new analysers on testequipment.com web site.

HP 8560E Spectrum analyser

The 8560E Portable Spectrum Analyzer offers excellent performance for RF design, manufacturing, and service applications. It has a frequency range of 30Hz to 2.9GHz. It features synthesized tuning for drift-free, accurate measurements.

Sensitivity is -145 dBm with noise sidebands typically less than -115 dBc/Hz at a 10kHz offset from 1GHz, more than 100 dB of spurious-free third-order dynamic range, and a TOI of up to +15 dBm. Digital resolution bandwidths range from 1 to 100Hz, and analog filters cover the resolution bandwidth range from 300Hz to 2MHz.

More details of this and similar refurbished or new analysers on testequipment.com web site.


Low cost Spectrum analyser for sale from the USA

The Satlook 10-SSA2 Digital is a Swedish made Sat-TV Instrument and Spectrum-Analyzer. The unit is made for exact alignment and adjustment of Satellite Dishes. It is intended for professional use when high accuracy and precise information are needed.

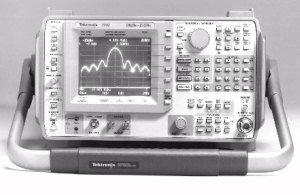

My old Tektronix 2792 Microwave Spectrum Analyser for Hire

Frequency range:10 kHz to 21 GHz   Min resolution bandwidth: 1 kHz.   I have repaired a scrap analyser with new CRT tube, rotation coils etc and repairs to the front panel and internal parts.   It now works well(*) and it suitable for earth station dish antenna alignment, sidelobe pattern tests, sub reflector adjustments, focussing and Eutelsat or Intelsat G/T antenna acceptance tests.   It is heavy, approx 46 lb.    If not in use or already booked, it may be available for hire in the UK for £50 per day (£200 per week) plus delivery/collection at £0.50 per mile.    This is not a general offer of hire.    If interested, please submit details of the proposed use, the company responsible, the names and qualifications of the people who will look after the equipment and security arrangements.  Please say if you will accept responsibility for any damage or loss.  I may be available to accompany the analyser and to provide technical assistance at a rate of £250 per day.   You may also hire my HP 7470A plotter or similar with IEE 488 (GPIB) bus connector.  You will need fresh plotter pens that have not dried out! Full technical details at Tektronix web site and then come back here please.  I don't have the handbook for this spectrum anlayser.  I am interested in PC interconnection and any software to do waterfall type data collection.   Please e-mail me Eric Johnston to hire this spectrum analyser  equipment or help with HPIB hardware/software interface.  (*) Now faulty - when used on 14 GHz the wanted signal vanishes when narrow spans are selected.

New portable and rack mount Spectrum Analysers for Sale

AVCOM AVC-PSA-37XP

AVCOM AVC-MSA-4507D

Go to PATRIOT for prices and details.

New Microwave Spectrum Analyser for Sale

Model: R3273 £24,035
General purpose, 20Hz - 26.5GHz, 10Hz-10MHz RBW 20mS full sweep
-98 dBc(Hz) phase noise (26GHz, 10k offset), IEEE488 bus control
Spectrum analyser options: Digital measurements, W-CDMA, PSK, GSM, DECT, PDC, PHS etc

To enquire about the above analysers in this column please contact Phil McCluskey at Rohde & Schwarz for brochures, options and current price quotations. Please tell Phil that you have seen this recommendation on the satsig.net web page. Thankyou.
