UK CDM570 VSAT hub gateway for NSS-7 Ku band Europe: internet access.

Includes: UK, Europe, North Africa, Egypt, Turkey, Ukraine, Lithuania and parts of the Middle East. The 10 deg elevation contour line is my recommended lower limit for Ku band operation; so stay in the green area.

CDM-570L VSAT hub

Hub teleport is just north of London, UK, providing dedicated quality links to businesses offices, internet cafés and ISPs throughout the European, north Africa, middle east coverage area.

Contact: Roger H Boddy I Eng FIET FRSA MIoD

By Post: Global Teleports, Brookmans Park Radio Station, Great North Road, Hatfield, Herts, AL9 6NE, England

By Phone: +44 (0) 1707 648311
By Fax: +44 (0) 1707 648 319

By Email:
enquiries@globalteleports.com

Example package price for groups of 25, 50, 100 sites, business offices, internet cafés in UK, Europe or North Africa, each with its own VSAT dish sharing dedicated satellite capacity

The Vipersat network is now being expanded with modern high-performance CDM570L satellite modems each with a imbedded IP routing, to provide the interface between your LAN traffic and the satellite links that connect remote stations to the hub and to each other. Network management software allows the hub to set system configuration and manages the protocol, modem, RF equipment and IP broadband networking.

The satellite modems use the latest turbo products forward error correction codes (FEC) and modulation schemes and pulse shaping to produce unrivalled spectral efficiency which is just what I am looking to encourage so as to get the best value for money out of the space segment.

The network management tool is called Vipersat Management System (VMS). This allows the modems to operate in dedicated SCPC mode, or if required, to share bandwidth based on application and data load. If you use the link only occasionally there is no point holding a link open all the time (and paying for it for all the time!). This effectively enables the network to better handle connection oriented applications and reduce network congestion. The VMS also allows for dynamic point to point connections to be established between remotes. For such "mesh" networking, larger remotes such as 1.2m or 1.8m diameter are recommended.

Bit rates from 2.4kbit/s to 5 Mbit/s.

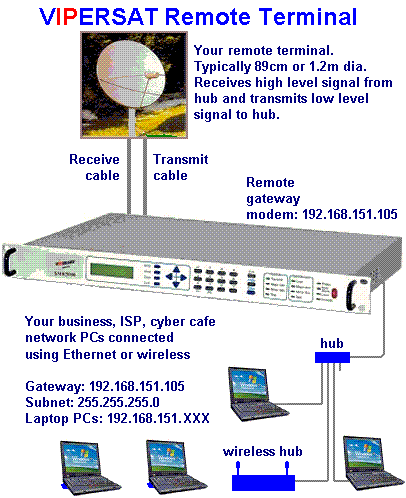

The network image on the right illustrates the older SMR5000L or Datum PSM 4900L modem which use BPSK or QPSK modulation. We continue to offer service to anyone with SMR5000L or Datum PSM 4900L modems. In addition to example wireless laptops, as shown, you may use wireless VoIP phones. Up to 253 IP addressed devices may be connected at each site using a switch. Alternatively any number of devices may be connected if you use a local router to expand into your own private IP address space.

Customer VSAT with CDM570L modem
