AM1 satellite 40E Vertical and Horizontal polarisation Ku band Spectrums 2007

Sample satellite spectrum analyser plots 7 East to 22 deg West, 17 May 2007

All spectrums are 10700 -11700 MHz Vertical polarisation.
Please note orbit locations and satellite names not yet matched exactly, except NSS7 at 22W

22W NSS7 Verified

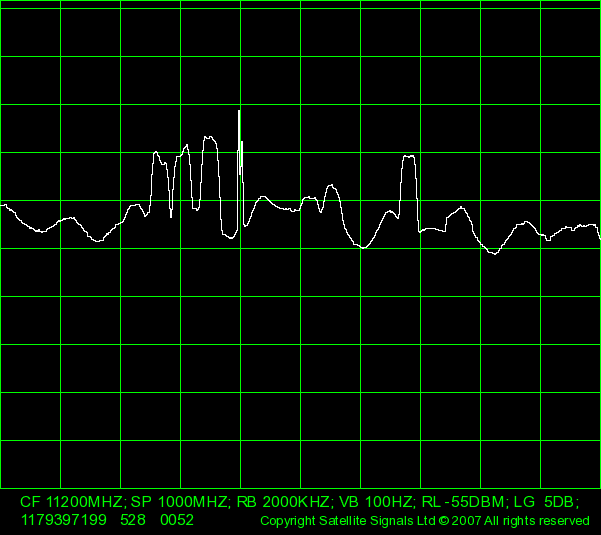

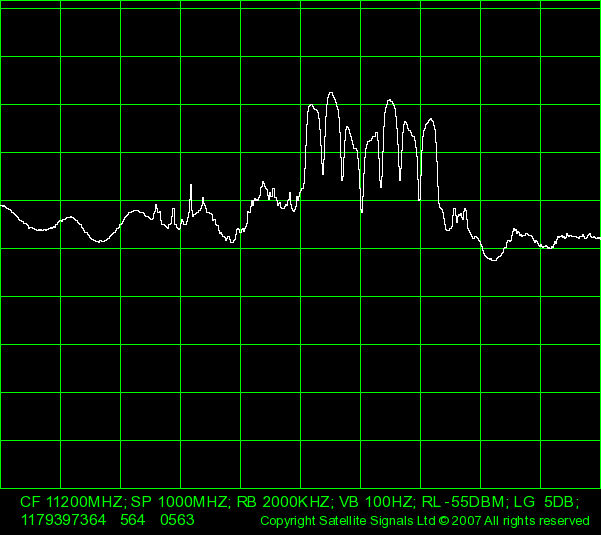

8W AB2 528 ?

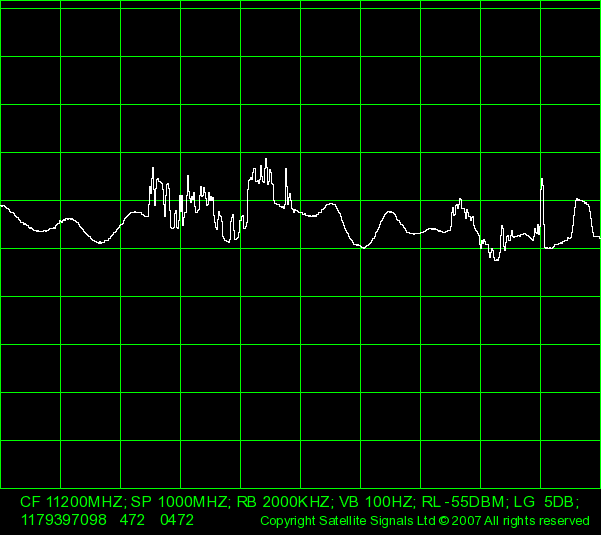

18W IS603 472 ?

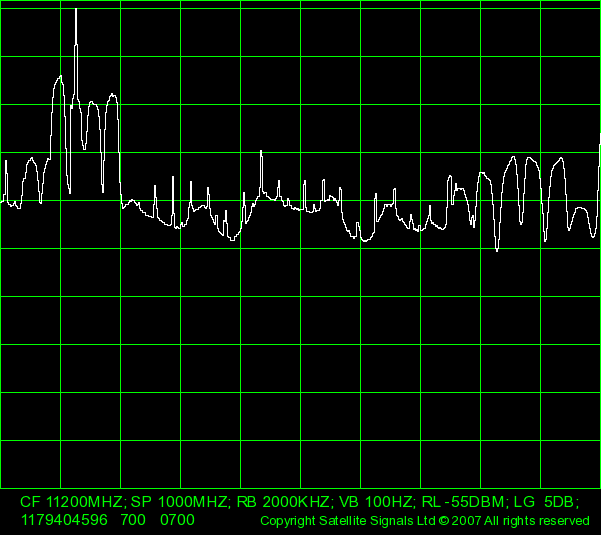

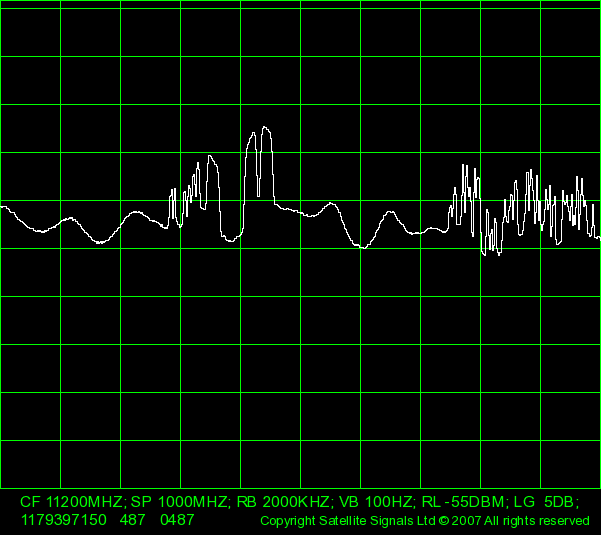

15W Telstar 487 ?

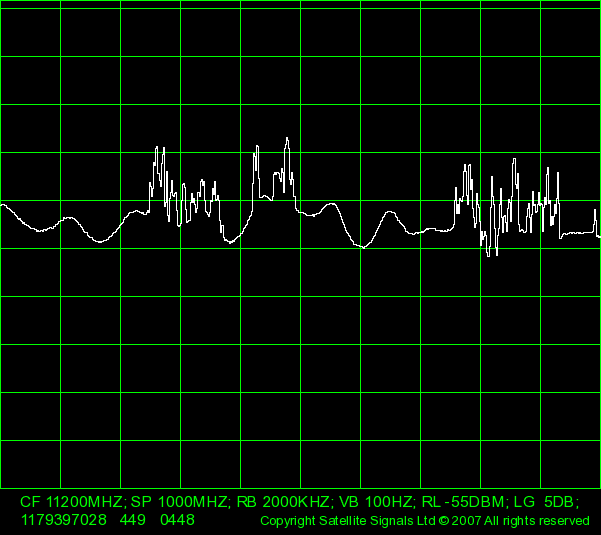

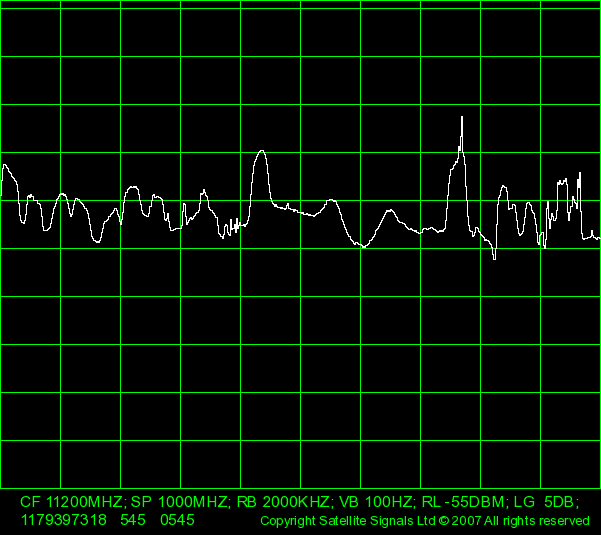

5W AB3 545 ?

1W IS10 ?

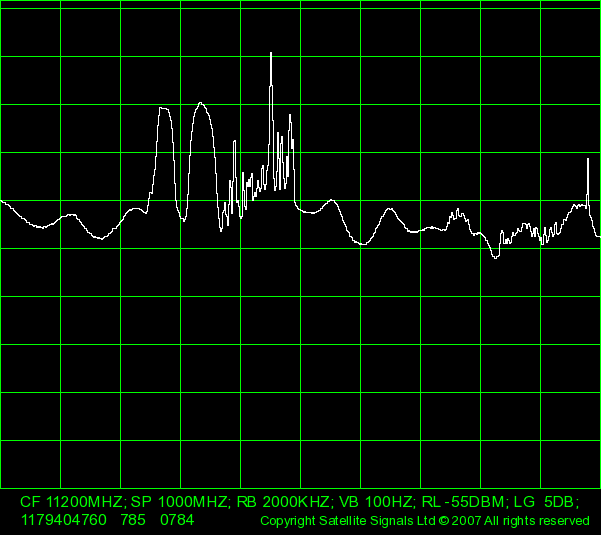

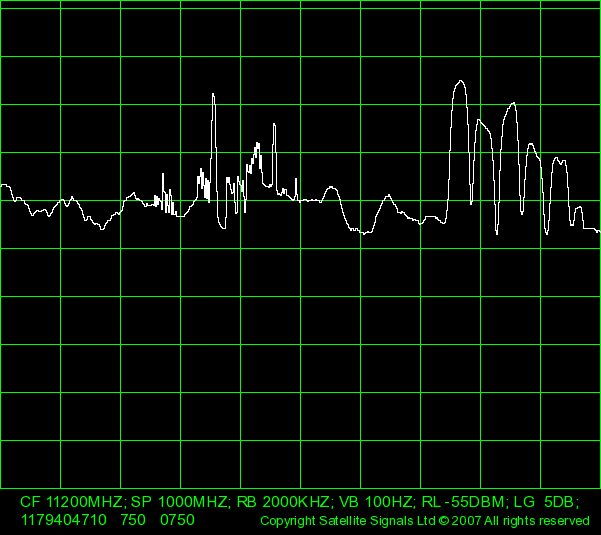

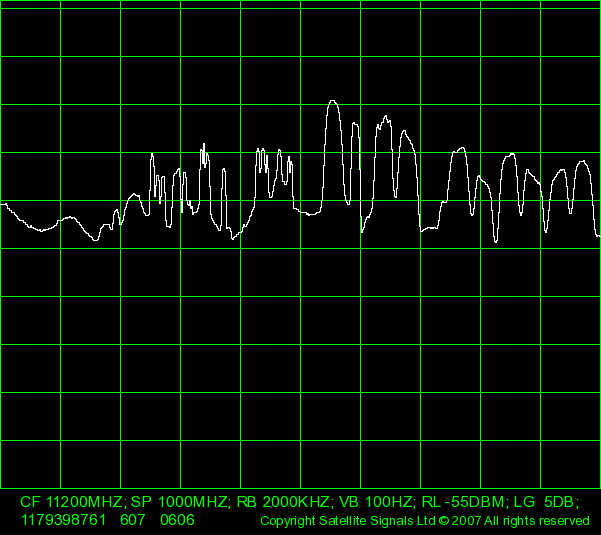

7E W3A ?

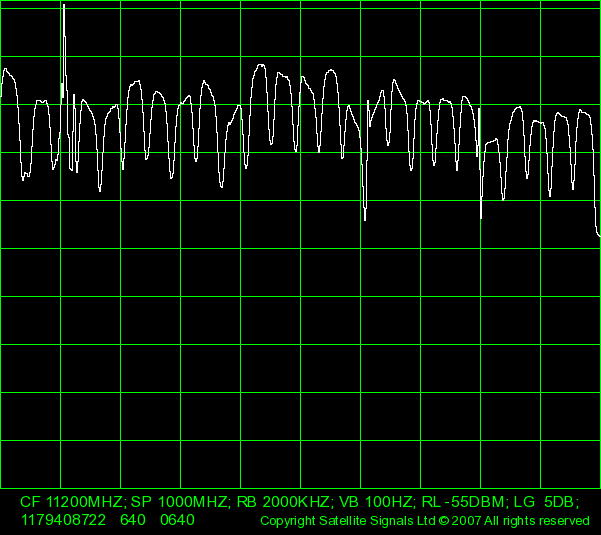

10E Hotbird Digital DVB-S TV carriers

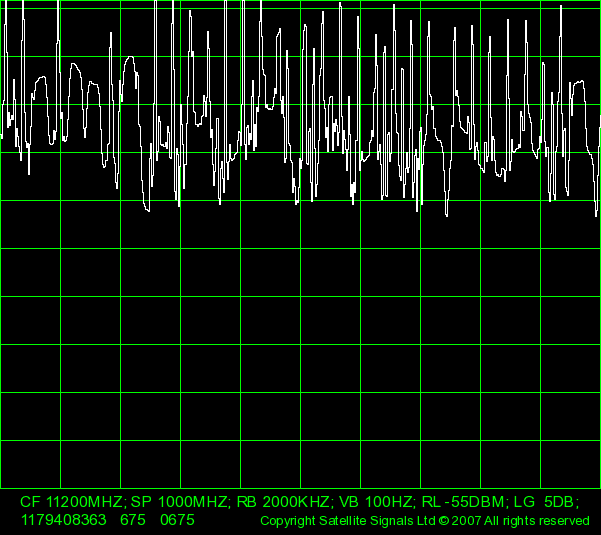

16E Eutelsat  ?

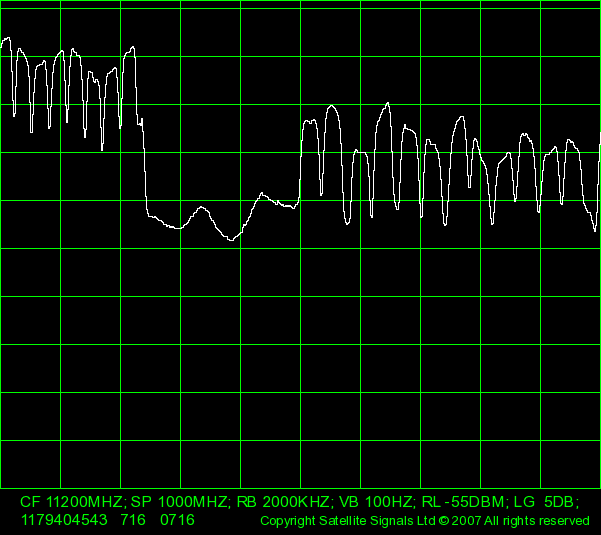

19.2E Astra FM TV carriers

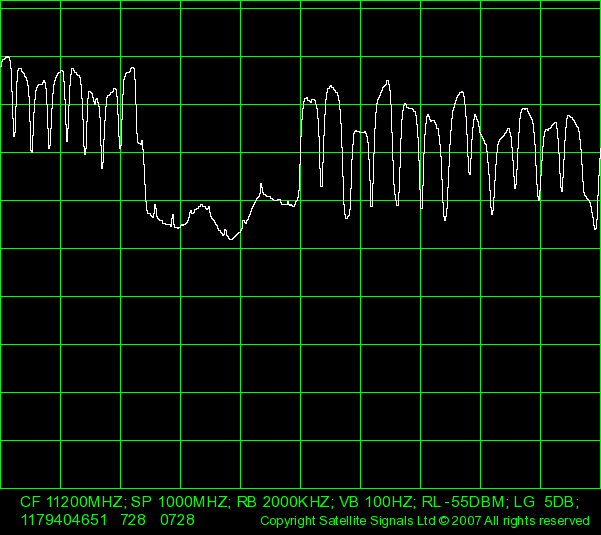

23.5E Astra ?

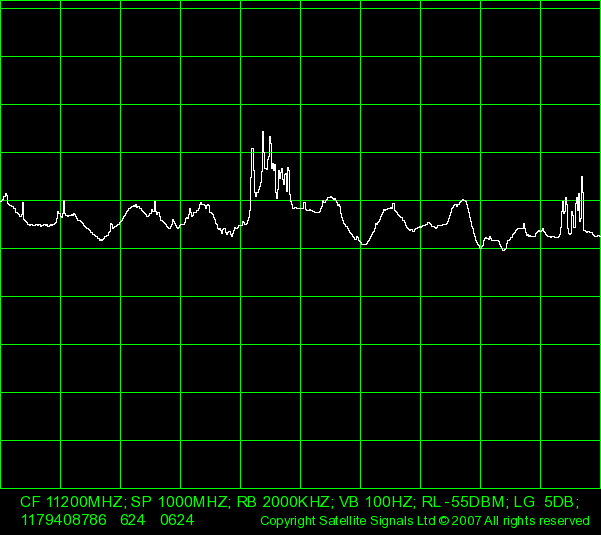

26E PAS5 ?

28.5E Eurobird ?

33E E bird

40E RSCC  AM1 satellite Vertical and Horizontal polarisation Ku band Spectrums 26 Aug 2007
