Access your SurfBeam 2 Satellite Modem Values via Shellscript

(Read 3439 times)
Veit
Member
**
Offline



Posts: 5
Access your SurfBeam 2 Satellite Modem Values via Shellscript
Aug 13th, 2014 at 8:21pm

Hey There,
I am very new to all that Satellite stuff. I am using a SkyDSL Installation in Germany and run in the FAP-Trap but thats not the point here.

Since the SkyDSL Support said my Installation may be bad, hardware wise, and again said that there is no "fair use policy" at all in the service, the only thing i have to consider is that its a shared medium, i thought about collecting as much information about the speed and fap/fup mechanism as possible.

I found out that you can get "plain text" values out of the modem by requesting the direct urls like the javascript of the WebGUI of the modem does.

Back to top


IP Logged

Veit
Member
**
Offline



Posts: 5
Re: Access your SurfBeam 2 Satellite Modem Values via Shellscript
Reply #1 - Aug 13th, 2014 at 8:23pm

To post the links and code, if have to create two normal posts since i am a new board member.. spam prevention ftw! Cheesy
Back to top


IP Logged

Veit
Member
**
Offline



Posts: 5
Re: Access your SurfBeam 2 Satellite Modem Values via Shellscript
Reply #2 - Aug 13th, 2014 at 8:24pm


The URLs are these:

Code:
http://192.168.100.1/?page=modemStatusData
http://192.168.100.1/?page=triaStatusData
http://192.168.100.1/?page=basicStatusData



and those are visible in the JavaScript, too:

Code:
http://192.168.100.1/?page=installStatusData - i havent tried
http://192.168.100.1/?page=speedTestData - always empty
http://192.168.100.1/?page=sngStatusData - shows an error



Then I took a look for a SpeedTest i can use in an shellscript and found this:
Code:
$ wget -O speedtest-cli https://raw.github.com/sivel/speedtest-cli/master/speedtest_cli.py
$ chmod +x speedtest-cli
$ ./speedtest-cli



renamed it to st.py and wrote this little shell script to create a CSV file.
It runs forever, waits 20 minutes before checking again.
It combines the Time with the actual RxSNR, Ping, DL and UL Speed.

It can be easily modified to handle all values you can also access in the webgui of the modem.

The script is very quick and dirty, but i wanted it to share with you Smiley

Code:
#!/bin/bash

while [ true ] ; do
        time=$(date +"%T");
        snr=$(curl -s http://192.168.100.1/?page=modemStatusData | cut -d '#' -f 23);
        speed=$(./st.py --simple --server 1746 &2>/dev/null);
        ping=$(echo $speed | cut -d ' ' -f 2);
        dl=$(echo $speed | cut -d ' ' -f 5);
        ul=$(echo $speed | cut -d ' ' -f 8);
        dataset="$time;$snr;$ping;$dl;$ul";
        echo $dataset >> speed.csv;
        sleep 900;
done



First results show, with no change in the RxSNR the downspeed suddenly really goes down when I start to stream a Video for example. So There IS a FAP (for sure, no news for you XD )
Back to top


IP Logged

Veit
Member
**
Offline



Posts: 5
Re: Access your SurfBeam 2 Satellite Modem Values via Shellscript
Reply #3 - Aug 14th, 2014 at 12:46pm

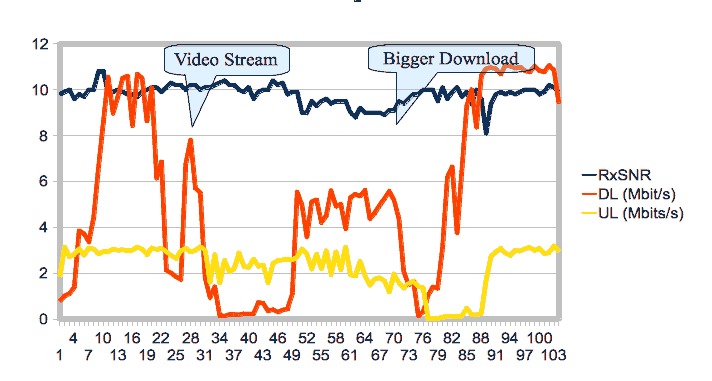

Here the first ~24h

...

...

Code:
01:12:28;9.8;513.766;0.77;1.84
01:20:02;9.9;455.242;1.00;3.13
01:35:50;10.0;447.898;1.10;2.71
01:53:02;9.6;548.015;1.38;2.81
02:09:52;9.8;501.849;3.85;3.07
02:25:44;9.7;491.048;3.72;2.78
02:41:36;10.0;485.255;3.37;3.09
02:57:33;10.0;552.654;4.41;3.05
03:28:56;10.8;627.477;6.62;2.83
03:44:39;10.8;511.115;8.60;2.94
04:00:15;9.8;515.708;10.55;2.94
04:16:00;9.9;497.256;8.97;3.05
04:31:35;10.0;491.543;9.70;3.00
04:47:23;9.9;659.649;10.51;3.02
05:03:09;9.8;531.167;10.60;2.97
05:18:56;9.8;621.23;8.43;3.00
05:34:34;9.7;514.782;10.68;3.14
05:50:19;9.9;538.446;10.51;3.05
06:06:04;10.0;480.308;8.63;2.81
06:21:40;10.1;497.087;10.09;3.10
06:37:22;10.1;448.328;6.14;3.02
06:53:02;9.9;521.773;6.86;3.09
07:08:40;10.1;609.362;2.12;2.93
07:24:45;10.3;514.597;2.00;2.77
07:41:08;10.2;502.661;1.84;2.64
07:57:37;10.2;515.252;1.72;2.97
08:14:08;10.0;579.846;6.75;3.09
08:29:48;10.2;484.232;7.81;2.93
08:45:26;10.2;527.543;5.70;2.99
09:01:10;10.0;514.081;5.51;3.15
09:16:54;10.1;670.364;1.78;3.01
09:33:25;10.1;578.799;0.94;1.60
09:50:57;10.2;464.454;1.41;2.81
10:07:45;10.3;579.242;0.15;1.57
10:26:33;10.4;609.359;0.13;2.56
10:45:37;10.2;498.516;0.19;2.06
11:03:30;10.2;428.921;0.19;2.19
11:21:34;10.0;590.923;0.18;2.88
11:39:54;9.9;523.738;0.23;2.29
11:57:26;10.1;568.405;0.23;2.25
12:15:00;9.6;506.543;0.22;2.61
12:33:09;9.9;431.5;0.72;2.30
12:49:06;10.0;443.918;0.68;2.35
13:05:57;10.0;546.637;0.34;1.58
13:24:15;10.4;503.594;0.41;2.42
13:42:02;10.2;542.036;0.30;2.55
14:04:18;10.3;541.098;0.39;2.58
14:24:15;9.8;509.398;0.43;2.60
14:41:56;9.9;525.59;1.11;2.57
14:59:08;9.9;511.664;5.53;2.71
15:14:51;9.0;522.771;4.96;3.06
15:30:35;9.0;535.779;3.58;2.84
15:46:29;9.5;547.778;5.12;2.17
16:02:16;9.3;561.729;5.20;2.82
16:18:01;9.5;499.052;4.21;2.18
16:33:54;9.6;533.68;4.50;2.98
16:49:44;9.4;513.948;5.60;1.94
17:05:30;9.5;591.011;4.91;2.92
17:21:17;9.5;493.1;5.01;2.15
17:37:04;9.5;501.191;3.94;3.14
17:52:56;9.0;553.684;5.30;1.92
18:08:45;8.8;507.197;5.44;1.87
18:24:33;9.2;521.439;5.36;2.51
18:40:20;9.0;500.014;5.61;1.87
18:56:06;9.0;485.948;4.37;1.47
19:11:59;9.0;578.999;4.62;1.74
19:27:46;9.0;525.788;4.95;1.80
19:43:32;8.9;572.46;5.25;1.66
20:16:11;9.1;563.312;5.57;1.17
20:32:33;9.1;520.182;5.17;1.97
20:48:22;9.5;496.106;4.37;1.58
21:04:21;9.4;511.169;2.04;1.34
21:20:17;9.6;510.734;1.49;1.54
21:36:26;9.8;500.237;1.65;1.64
21:52:09;9.8;790.824;0.14;1.42
22:10:48;10.0;580.381;0.31;1.36
22:27:58;10.0;835.978;1.02;0.01
23:10:24;10.0;772.337;1.40;0.02
23:38:08;9.5;532.677;1.34;0.03
00:03:52;10.1;491.659;3.10;0.07
00:23:46;9.6;491.795;6.18;0.13
00:41:18;9.9;522.588;6.64;0.12
00:58:56;10.1;573.059;3.75;0.09
01:17:41;9.7;519.016;6.53;0.13
01:35:15;9.9;490.907;9.30;0.47
01:51:19;9.4;650.351;10.01;0.18
02:08:20;10.0;569.664;8.36;0.18
02:25:14;9.6;465.659;10.61;0.24
02:41:54;8.1;592.455;10.92;1.71
02:57:44;9.4;489.751;10.97;2.73
03:13:31;9.8;520.025;10.91;2.92
03:29:16;9.9;403.985;10.68;3.08
03:45:05;9.8;496.763;11.07;2.87
04:00:50;9.9;478.363;11.02;2.77
04:16:35;9.8;469.314;10.94;3.00
04:32:21;9.9;486.023;10.99;2.96
04:48:06;10.0;536.904;10.83;3.06
05:03:53;10.0;509.268;10.77;3.12
05:19:38;10.0;536.017;11.03;2.99
05:35:25;9.8;475.536;10.83;3.08
05:51:13;9.9;467.597;10.77;2.84
06:07:01;10.2;665.372;11.06;2.90
06:22:46;10.1;516.93;10.85;3.19
06:38:32;9.9;523.338;9.42;2.96




As expected, the downspeed went down when I created more Traffic then "normal" browsing. RxSNR was between 9 and 11.
Back to top
« Last Edit: Aug 15th, 2014 at 5:55pm by Admin1 »

IP Logged

Markus
Member
**
Offline



Posts: 1
Re: Access your SurfBeam 2 Satellite Modem Values via Shellscript
Reply #4 - Aug 17th, 2014 at 9:43am

Thanks for the skipt.

lg,
markus
