want to build a VSAT Network

(Read 2415 times)
Vietnam television
Member
**
Offline


trunglqvtv

Posts: 14
Gender: male
want to build a VSAT Network
Apr 25th, 2015 at 5:18pm

Hi, I want to build a VSAT network include 3 terminal VSAT and 1 HUB,please recomend me
Back to top


Transmission center, VTV
258 Bach Dang street, Hai chau distric, Da nang city, Vietnam
Phone: 84 511 3565013 / +84 916 899 783
https://vn.linkedin.com/pub/le-trung/87/a45/489
SMS/Whatsapp/viber: +84 916 899 78
WWW | Facebook
IP Logged

hafid
Member
**
Offline



Posts: 10
Morocco
Gender: male
Re: want to build a VSAT Network
Reply #1 - Apr 25th, 2015 at 11:20pm

Hi,

To build your VSAT network, i think first, you need to precise  the  use of your network(applications) to determine the type of technology you should deploy it,  shared BandWidth there is DVB-S2/MT-FDMA  or   dedicated BW there is SCPC ...

for shared BW there are differents manufacturers iDirect, Hughes, Gilat...and if you have small number of remote VSAT you can discuss  with the manufacturer(for example in iDirect there is a small hub for 15 remotes Model 10115 Satellite Hub)

for dedicated BW SCPC, you can use Comtech equipements: CDM- 750 and  Quad CDD-564.

the second step is to determine  the RF equipements by contacting your chosen satellite operator.
...



Best Regards,
Hafid
Back to top


IP Logged

Vietnam television
Member
**
Offline


trunglqvtv

Posts: 14
Gender: male
Re: want to build a VSAT Network
Reply #2 - Apr 26th, 2015 at 4:04am

Thanks,
My service want to transmit is video transmission, from mobile studio to master control room. In we network at present we use DSNG truck, we use DVB S2 but my boss want to change to VSAT IP and option DVB S2
So I want to build a VSAT network, has some VSAT terminal (3,4 VSAT teminal) , The VSATs are on the move antenna operate on moving ship,please advice me some configuration
Back to top


Transmission center, VTV
258 Bach Dang street, Hai chau distric, Da nang city, Vietnam
Phone: 84 511 3565013 / +84 916 899 783
https://vn.linkedin.com/pub/le-trung/87/a45/489
SMS/Whatsapp/viber: +84 916 899 78
WWW | Facebook
IP Logged

hafid
Member
**
Offline



Posts: 10
Morocco
Gender: male
Re: want to build a VSAT Network
Reply #3 - Apr 26th, 2015 at 9:42pm

Hi,
you can request the service from  VSAT provider without investing in the HUB.

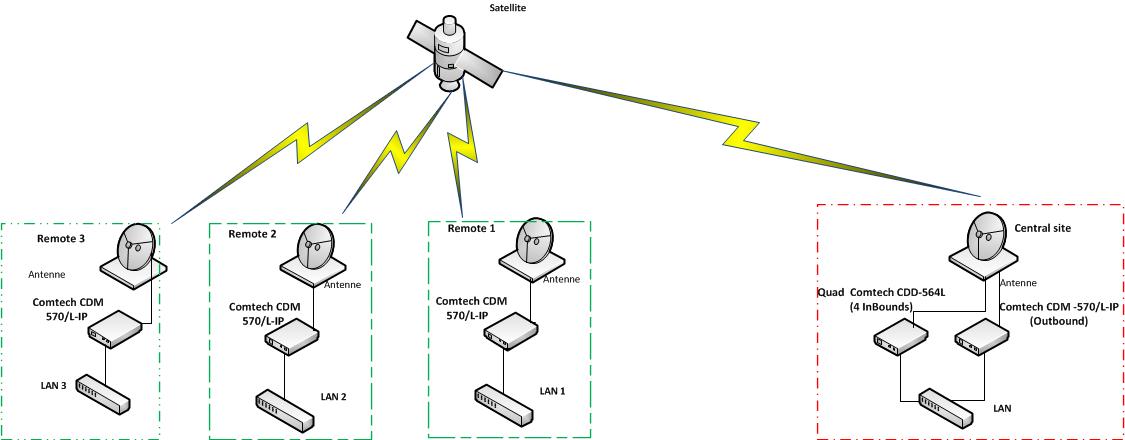

but  if you want to make your own network, the perfect solution for video transmission is to use SCPC technology, the solution Architecture  for  one central site and 3 remote sites:

...

For the RF(Antennas,BUC, LNB) equipments, you should make the Link Budget in coordination with the satellite operator, and take into account your available equipements.

BRs,
Hafid
Back to top
« Last Edit: Apr 26th, 2015 at 10:57pm by Admin1 »

IP Logged

Vietnam television
Member
**
Offline


trunglqvtv

Posts: 14
Gender: male
Re: want to build a VSAT Network
Reply #4 - Apr 27th, 2015 at 1:56am

thanks ,
these VERY useful information.
Does all VSAT terminal manufature will has HUB product too
Back to top


Transmission center, VTV
258 Bach Dang street, Hai chau distric, Da nang city, Vietnam
Phone: 84 511 3565013 / +84 916 899 783
https://vn.linkedin.com/pub/le-trung/87/a45/489
SMS/Whatsapp/viber: +84 916 899 78
WWW | Facebook
IP Logged

Eric Johnston
Senior Member
***
Offline


Personal text from Profile,
Options, Top line

Posts: 2107
Re: want to build a VSAT Network
Reply #5 - Apr 27th, 2015 at 10:09am

It is perhaps worth noting that in the Comtech SCPC solution shown above that there is no need for an expensive Hub software licence as all the initial set up configuration may be done manually.

If the remote sites transmit their video, with only one site uplinking at any time, then there will be big savings in transponder lease costs, but someone will need to supervise the operation so that only one site transmits at any time.

Can a similar network be configured using iDirect 5000 series SCPC modems, without a hub equipment or licence costs?

Eric
Back to top
« Last Edit: Apr 27th, 2015 at 2:17pm by Eric Johnston »
