Andrew 7.3m C-band antenna

(Read 1540 times)
Ex Member
Ex Member


Apr 28th, 2015 at 1:36pm
I would like to find out how difficult it is to change the feed on a 7.3m Andrew antenna. The feed is currently linear and I would like to change it to circular.
Can 1 person alone do it?

Thanks
Back to top


IP Logged

Eric Johnston
YaBB Moderator
*****
Offline


Personal text from Profile,
Options, Top line

Posts: 2108
Reply #1 - Apr 28th, 2015 at 5:48pm

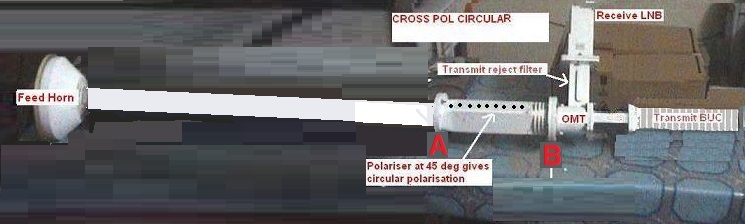

Have a look at the joint flanges where the circular waveguide from the feed horn is connected to the OMT, which splits out the 4 GHz and 6 GHz rectangular waveguides.

How accessible is that joint ?

If easily accessible then consider how a polariser tube could be inserted between A and B.
...

Be extremely careful not to bend the long circular tube, even by 1/000 inch.

Read more: Circular polarisation set up

Your antenna has dual optics (i.e. sub-reflector and main reflector) so the transmit circular polarisation of the feed is the same as the transmit polarisation from the your big dish.


Best regards, Eric.
Back to top


IP Logged

Ex Member
Ex Member


Reply #2 - Apr 29th, 2015 at 7:41am
Thanks Eric!
