ANDREW Elliptiguide 2132 transitions for sale

(Read 125 times)
Admin1
YaBB Administrator
*****
Offline


Personal text from: Profile,
Options, Top line

Posts: 871
Aug 17th, 2018 at 7:34pm

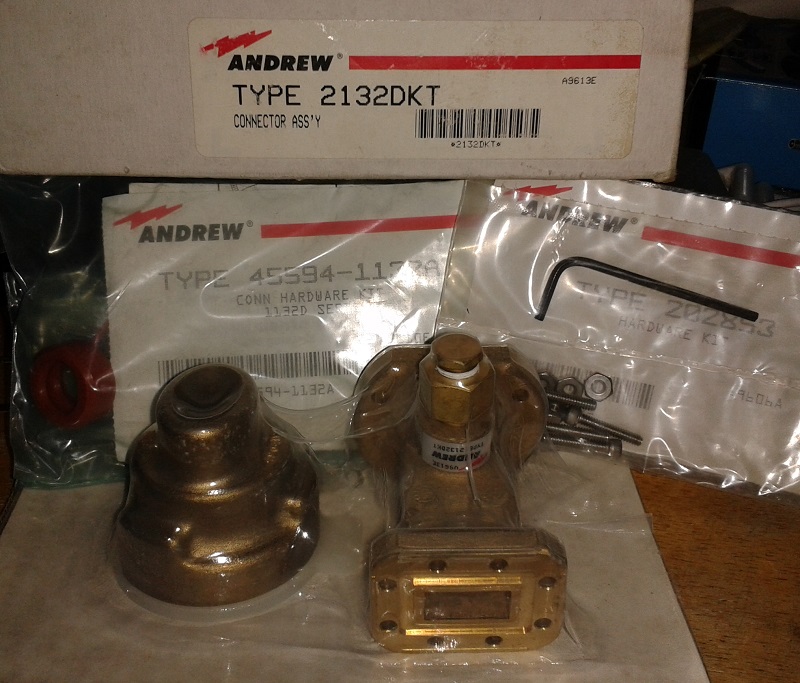

1st item: I have one complete NEW kit for Andrew ellipti-guide to rectangular waveguide transition. TYPE 2132DKT in box. Two castings in sealed bubble.  Air port.

plus CONN HARDWARE KIT 45594-1132A Large dia O ring, short fat O ring,  grease.  3 large screws and 2 small screws  and allen hex key.

plus Hardware kit 202853 8 screws, washers, nuts, two rectangular O rings, allen hex key.

...

Waveguide aperture 0.75 x 0.375 inches.
Flange WR75-CPRG with 8 screw holes.

-----------------------------------------------------------

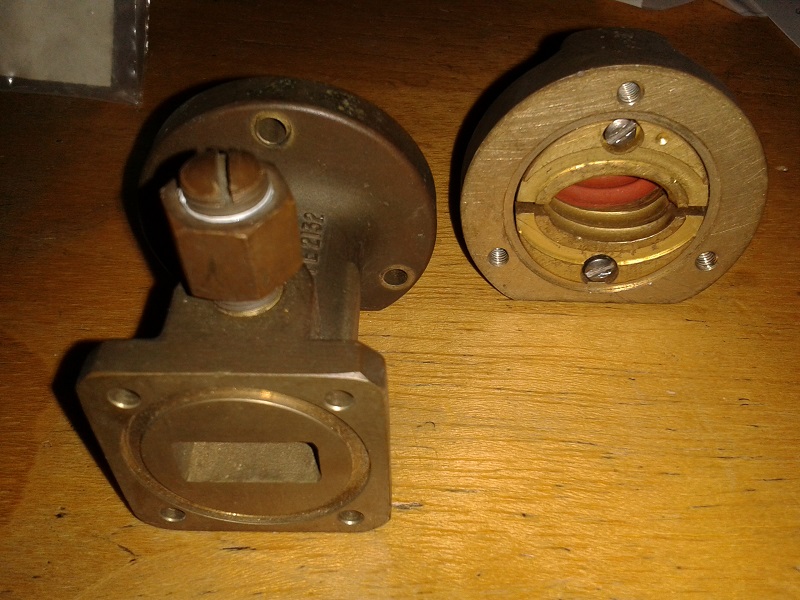

2nd Item.   Two main parts. Used.  Andrew elliptiguide to waveguide transition to rectangular waveguide.   Two castings, one with with small fat red O ring in situ.
Air port. The 3 tuning screws set for minimum reflection at 14.25 GHz.

Probably type 2132DCT. Sold as seen below.

The 3 main screws missing. These are slightly larger diameter than regular screws. I have included 3 screws with correct thread but they are shorter than ideal and have cross head!

Waveguide flange WR75 with 4 screw holes.
Waveguide aperture 0.75 x 0.375 inches.

...


If wanted, please email me eric@satsig.net
All (i.e. both) to be sold in one lot.

Included: Instructional sheet, mainly about carefully shaping the copper end of the elliptical waveguide.

You can find similar items on ebay if you search for ANDREW COMMSCOPE TYPE 2132.
