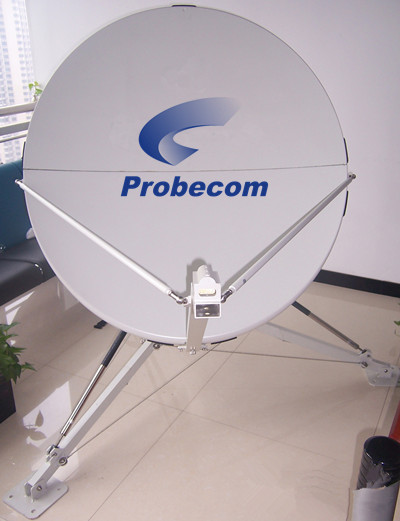

1.2m Ku Band Fiber Glass Manual Flyaway Antenna

(Read 744 times)
probecom
Senior Member
***
Offline



Posts: 58
Dec 18th, 2018 at 2:58am
Specifications

The antenna is shaped and assembled by four segment of fiber glass panels, with characteristics of large rigidity, light weight, high precision of profile

Stable tripod easy for carry, suitable for all terrain

Quick deployed within 10 minites

Full C band and Ku band linear feed, covering world wide spectrum application

The antennas are designed for suitcase and packsack, easily carry and transport.

Technical Specifications

RF SPECIFICATIONS

Ku-receive

Ku-transmit

1.2M

1.2M

Frequency(GHz)

10.7-12.75

13.75-14.5

Typical Gain(dB)

41.8

42.8

VSWR

1.5:1

1.3:1

Beam width: -3dB

1.4°

1.2°

Power Handing Capability



1KW/Port

Feed Insertion

WR-75

Feed Insertion Loss(dB)

0.25dB

0.25dB

Tx-Rx Isolation

80dB

Cross Polarization Isolation

≥30dB

Side Lobes

CCIR.508-4














MECHANICAL SPECIFICATIONS

Weight

40kg

material

Fiber Glass

Mounting time

Ten minutes (Two Persons)

Drive mode

Manual Drive

Azimuth Travel

-15°~15°Fine adjust

Elevation travel

7°~85°

Polarization Travel Rate

±90°

Surface Accuracy (R.M.S)

0.4mm

Ambient Temperature

-50°~+80°

Relative Humidity

0%~100%
