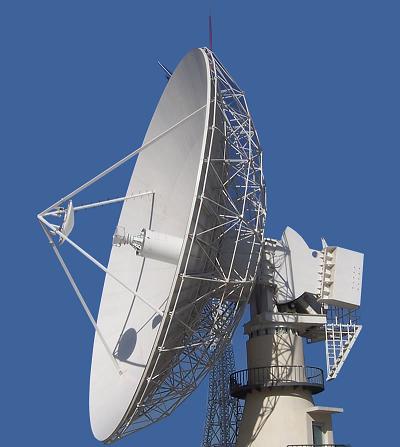

20m earth station antenna Antesky  sale

20m earth station antennas for sale



Antesky professional team supply high-qualified earth station antenna
www.antesky.com
20M C-BAND ANTENNA WITH 4-PORT DUAL LINEAR/CIRCULAR POL. FEED

Features
Meets or Exceeds CCIR 580 and INTELSAT Requirements
High G/T, Excellent Pattern Characteristics
Thermal Spaying Zinc Steel Ground Mount Assembly
C-band Antenna Operating in 800MHz Bandwidth Option
4-port Linear/Circular Feed
Field Changeable Feed System, Switchable Circular to Linear C-band
specification
20m C/Ku band earth station antenna specification
ELECTRICAL SPECIFICATION:
Operating Frequency, GHz
C-Band：Rx(3.625～4.2)      Tx(5.85～6.425)
Extend C-Band:Rx(3.4～4.2) Tx(5.85～6.65)
Polarization: Linear/ Circular
Radiation Pattern:First Sidelobe      ≤-14, Meet ITU-RS.580-5 and other requirements
MECHANICAL SPECIFICATION
Azimuth      ±170° continuous（w.r.t true south）
Elevation      5°～90°(continuous)
Finishes: Reflector Surface        Pedestal & Back Structure      Aluminum panels with high-diffusing white paintGalvanized steel
ENVIRONMENTAL SPECIFICATION
Operational Wind      72km/h Gusting to 100km/h
Survival Wind      200km/h
Rain      Up to 100mm/h operational and survival
Relative Humidity      Up to 100% operational and survival
Temperature      - 40°C  to  +60°C
Radial Ice(Survival)      25mm on all surface
Shock and Vibration      As encountered during shipment by commercial air, sea, or truck
Corrosive atmosphere      As encountered in coastal regions and/or heavily industrialized areas
Seismic (Survival)      0.3g (H), 0.15g (V)

Details information
please get the details information from "www.antesky.com/

ANTESKY SCIENCE TECHNOLOGY INC. (www.antesky.com)is a specialized company engaged in the design and manufacture of satellite communication earth station antenna,SNG antenna, on-the-move antenna, microwave antenna,2.4m Earth Station Antenna,3m Earth Station Antenna,3.7m Earth Station Antenna,4.5m Earth Station Antenna,6.2m Earth Station Antenna,7.3m Earth Station Antenna,9m Earth Station Antenna,11m Earth Station Antenna,11.3m Earth Station Antenna,13m Earth Station Antenna,16m Earth Station Antenna,18.5m Earth Station Antenna,20m Earth Station Antenna,50m Earth Station Antenna,1.0M SNG Antenna,1.8M SNG Antenna,2.4M SNG Antenna,On-the-move antenna 0.8m, 1.2m, 1.5m .
Contact person:Byron Xue
e-mail:sales@antesky.com
MSN: antesky@hotmail.com
tel 0086-29-88352448
fax 0086-29-88352334
Web: https://www.antesky.com/
Company: Antesky Science Technology Inc.
Add:Taibai South Road, Xi'an, Shaanxi, China
