Help Align w6 at COB Speicher

(Read 1783 times)
Ex Member
Ex Member


Sep 23rd, 2009 at 4:01am
Man I have never had so much trouble aligning a dish.. If anyone is in Speicher that could come do this for me, I'll pay at this point.

Let me know. Tips are welcome.
Back to top


IP Logged

Eric Johnston
Senior Member
★★★
Offline



Posts: 2109
Reply #1 - Sep 23rd, 2009 at 9:01am

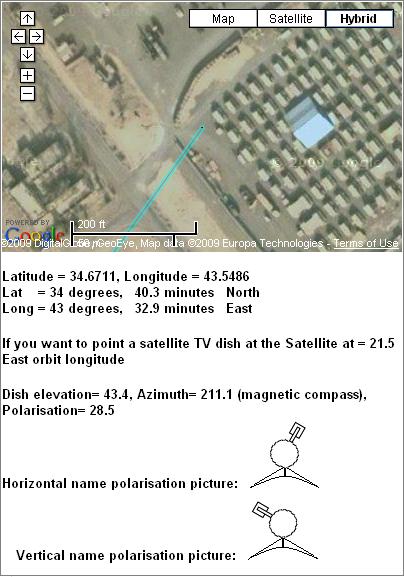

This image below gives the dish pointing angles for an airfield north of Tikrit, probably COB Speicher or nearby.

Note the blue line which shows the direction of the 21.5 deg east (W6) satellite relative to the buldings.
...
Note the two alternative images of the feed polarisation, as seen with you behind the dish, facing forwards towards the satellite in the sky.  Your service provider should have told you what name polarisation to receive.

The polarisation images assume you have an dish with the feed arm at the bottom and set the polarisation by turning the feed/LNB/BUC assembly.  If you have the advanced Hughes HX/Prodelin 1.2m arrangement the entire dish has to be turned instead.

If you need help I suggest you look around and search for a similar VSAT dish and ask the people who look after it.

If you are elsewhere in Iraq use this page Satellite dish pointing in Iraq

Best regards, Eric.
