Vehicle-mounted satellite antenna is a kind of small satellite communication earth station which is carried by various types of vehicles including commercial vehicle, SUV, MPV and other off-road vehicles, and communicates when the vehicle is parked. Compared with the ring focus feed satellite antenna, the offset reflector satellite antenna has the advantages of high gain, low sidelobe and small size. At the same time, the designed vehicle static communication satellite antenna has excellent electrical performance, stable and reliable structure, and has good practicability. It is widely used in emergency response departments, troops, news gathering and other industries. Antesky provides antennas in C-band, Insat C band, Ku, Ka and X-Band with various diameters (from 1.2 meter–4.5 meters) available. Antesky 1.8m Vehicle-mounted satellite antenna is one of our best-selling products, which is very popular in the market because of its excellent product performance and reasonable price. Customers from South America and Asia feedbacked to us that our antenna with low noise temperature and high gain can well meet their receiving and transmitting needs.
This month we delivered 1 set of 1.2mVehicle-mounted satellite antenna with C-band after debugging at our factory. Please refer to this previous 1.2m Vehicle-mounted satellite antenna with Ku-band shipping as well.
Copyright © www.antesky.comSystem Composition of Antesky 1.2m Vehicle-mounted satellite antennain C-band
Antenna feed subsystem: one piece of carbon fiber main reflector , feed and feed support
Rotary table subsystem: Az, El, thress-axis polarization rotary table
Servo control subsystem: antenna control unit and antenna drive unit
Position acquisition subsystem: digital compass and built-in GPS
Receiving subsystem: high-sensitivity beacon receiver
Below is the real view, front view and controller display of 1.2m Vehicle-mounted satellite antennain C-band.

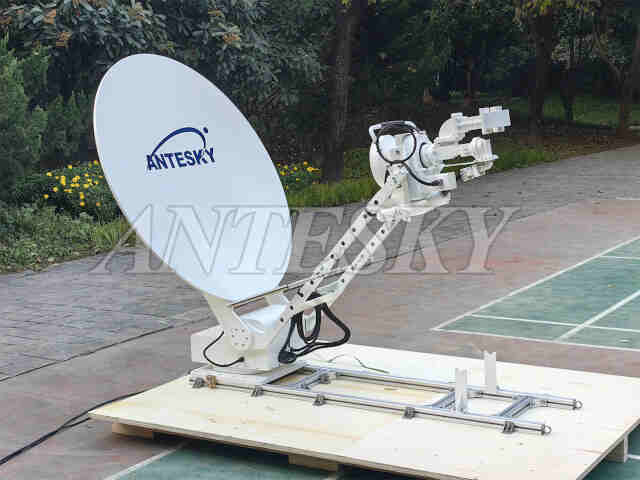

Antesky 1.2m Vehicle-mounted satellite antenna (C-band)

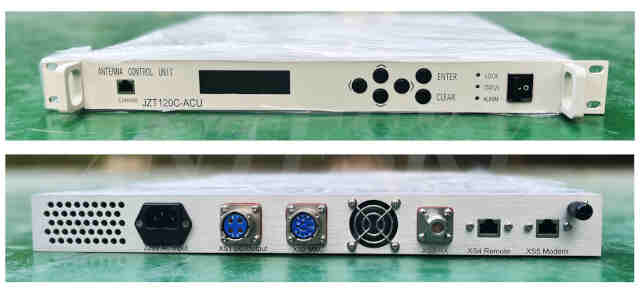

Controller Antesky 1.2m C band Vehicle-mounted satellite antenna (C-band)

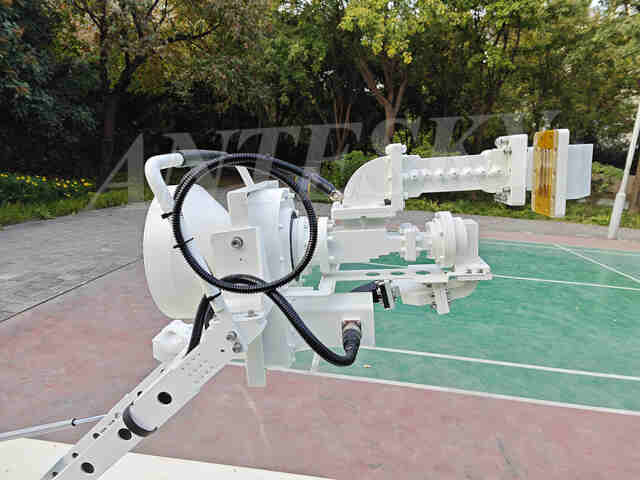

C band feed system of Antesky 1.2m Vehicle-mounted satellite antenna

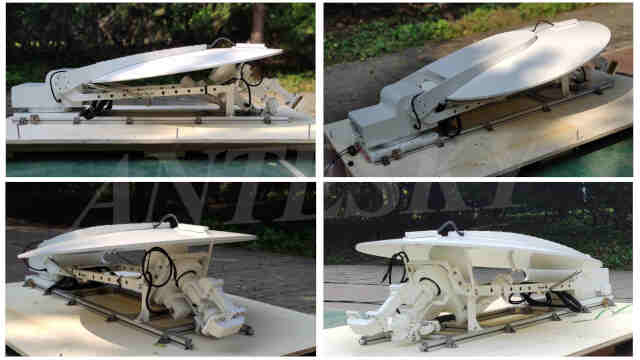

Copyright © www.antesky.comtop view of Antesky 1.2m C band vehicle mounted antenna Antesky 1.2m Vehicle-mounted satellite antenna in stow status
2. System Characteristics of Antesky 1.2m Vehicle-mounted satellite antenna
Conveniently installed on top of commercial vehicle, SUV, MPV and military square cabin without wearing roof;
The reflectoradopts a structure of carbon fiber skin and aluminum honeycomb sandwich. Compared with the traditional aluminum reflector, the reflector in the form of carbon fiber has the advantages of light weight, high precision and easy molding.
The feed bracket adopts integrated casting molding process to achieve accurate positioning of the feed and ensure excellent electrical indicators.Reasonably structured antenna feed arm, suitable for BUC/ODU installation;
Equipped with high GPS precision and strong anti-interference of electronic compass, which ensures the stability and the accuracy of the program to point the satellite.
Strong operability that person can operate by “one-key pass” function without training
The antennas can automatically align to the satellite within 3 minutes in an open and safe place.
Antenna operates more safely with multiple protection functions such as automatic alarm, mechanical limit and software limit.
Copyright © www.antesky.comDiagram of 1.2m Vehicle-mounted satellite antenna package
Operation and maintenance is important for mechanical parts. You can view this blog of common problems and solutions for Vehicle-mounted satellite antenna maintenance.
Also, another customer order 2 sets of Vehicle-mounted satellite antenna that is 1 set of 1.8m Vehicle-mounted satellite antenna and 1 set of 1.2m Vehicle-mounted satellite antenna. We expected to hear from client the installation and operation photos soon and we will share with you more details by then. If you want to learn some more information about this antenna, please contact us via sales@antesky.com. We will provide you high quality antenna with the best price. Thanks!
