The precision version is manufactured from brass and painted with attractive, hard wearing, epoxy paint finish as standard. Each adaptor is tuned to offer the highest possible performance over the full waveguide frequency band.

We the following precision WG to coax adaptors ready to be delivered!

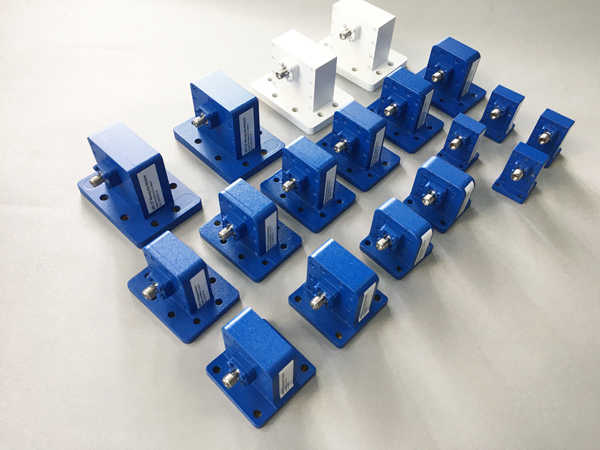

Precision Version WaveGuide Coax Adapters
Precision WG to Coax Adaptors:

WR137, SMA-F to UDR-70, Brass with Chromate, VSWR‰¤1.15
WR112, SMA-F to PDR-84, Brass with Chromate, VSWR‰¤1.15
WR90, SMA-F to UDR-100, Brass with Chromate, VSWR‰¤1.15
WR62, 2.92-F to PBR-140, Brass with Chromate, VSWR‰¤1.15
WR42, 2.92-F to UBR-220, Brass with Chromate, VSWR‰¤1.15

VSWR Test for Precision WG to Coax Adaptors:

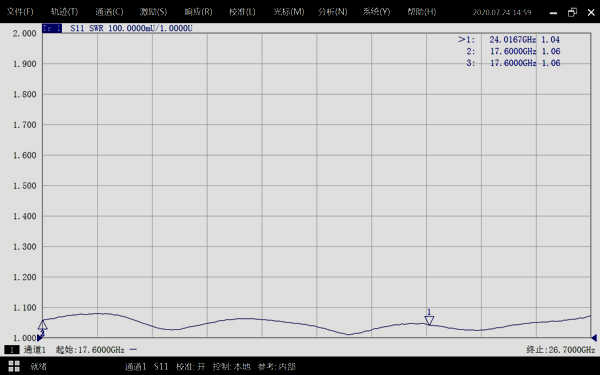

WR42-Precision-WG-to-Coax-Adaptors

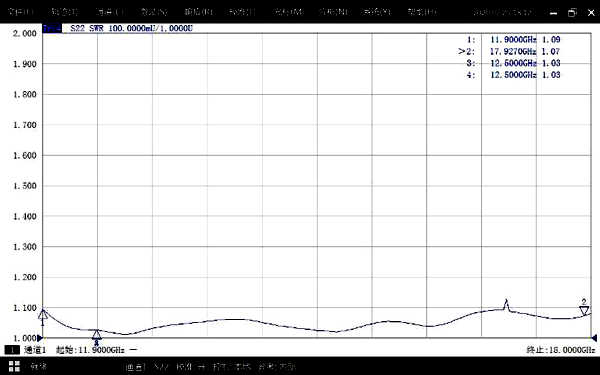

WR62-Precision-WG-to-Coax-Adaptors
