Telstar 11N Africa Ku band beam coverage maps and frequency plan

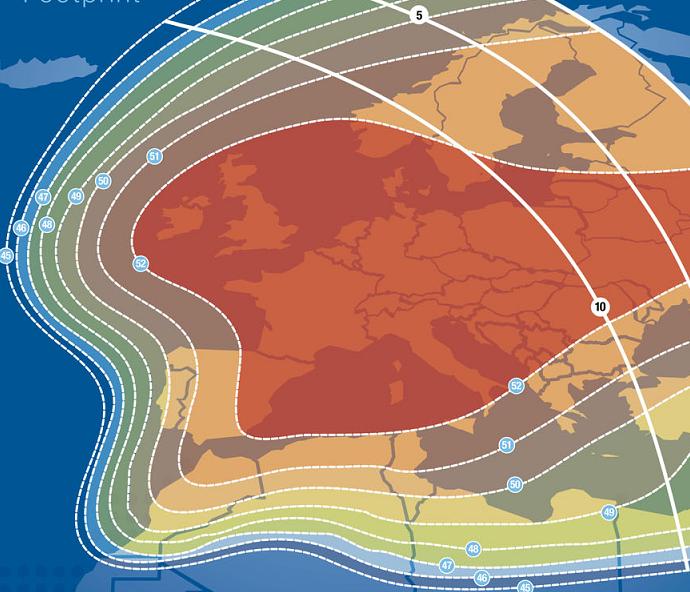

Telstar 11N at 37.5 deg West, Europe Ku band beam coverage.
 Telstar 11N 37.5 West Ku-band Europe beam
Above: Telstar 11N at 37.5 deg West, Europe Ku band beam coverage. Peak eirp 51+ dBW.

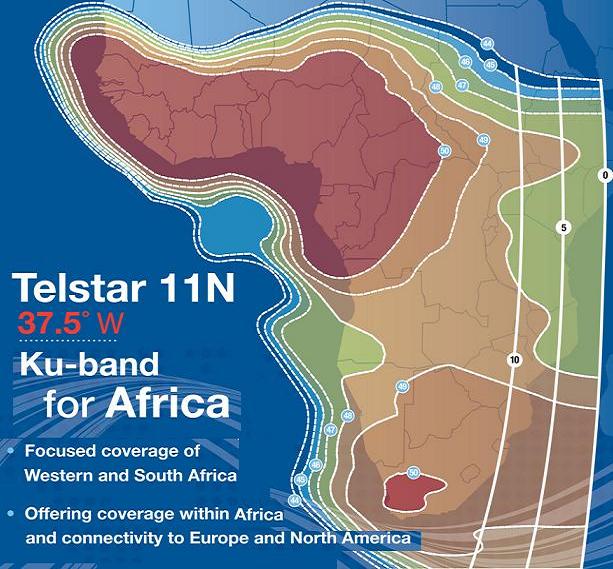

Below: Telstar 11N at 37.5 deg West, Africa Ku band beam coverage.
Telstar 11N 37.5 West Ku-band Africa beam
Downlink transponder EIRP. Peak 50+ dBW. Operation above 10deg elevation angle recommended.

In Africa, you may lease capacity connected Africa to Africa, or alternatively, cross connected Africa to Europe and Europe to Africa via the Level421Teleport in Ulm,.Germany. Contact: e-mail: sales@level421.com

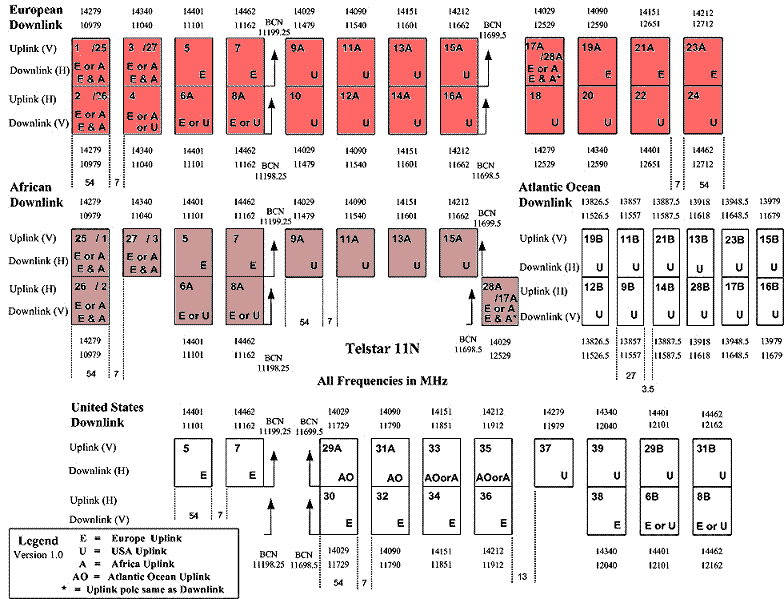

Above: Telstar 11N frequency plan.
Telstar 11N Frequencies
