1.2m Ku Band Fiber Glass Manual Flyaway Antenna for sale

(Read 1473 times)
Ex Member
Ex Member


Nov 19th, 2014 at 7:17am

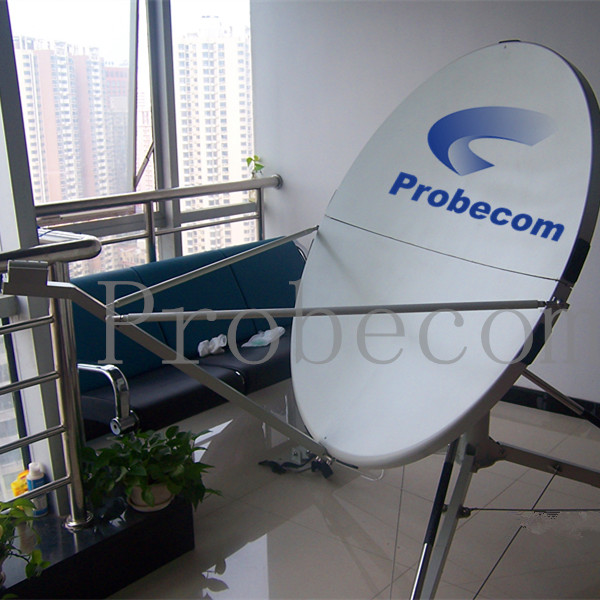

Probecom 1.2m ku band fiber glass manual flyaway antenna

Specifications

The antenna is shaped and assembled by four segment of fiber glass panels, with characteristics of large rigidity, light weight, high precision of profile

Stable tripod easy for carry, suitable for all terrain

Quick deployed within 10 minites

Full C band and Ku band linear feed, covering world wide spectrum application

The antennas are designed for suitcase and packsack, easily carry and transport.

Technical Specifications

RF SPECIFICATIONS
Ku-receive
Ku-transmit

1.2M
1.2M

Frequency(GHz)
10.7-12.75
13.75-14.5

Typical Gain(dB)
41.8
42.8

VSWR
1.5:1
1.3:1

Beam width: -3dB
1.4°
1.2°

Power Handing Capability

1KW/Port

Feed Insertion
WR-75

Feed Insertion Loss(dB)
0.25dB
0.25dB

Tx-Rx Isolation
80dB

Cross Polarization Isolation
≥30dB

Side Lobes
CCIR.508-4

Probecom Microwave Technology Co.,Ltd. is a specialized company engaged in the design and manufacture of Flyaway antenna.include 0.55m flyaway antenna,0.75m flyaway antenna,1.0m flyaway antenna(carbon fiber,aluminum),1.0m auto-tracking flyaway antenna,1.2m flyaway antenna(ku-band Aluminum,ku-band Carbon fiber, ku-band tripod type aluminum,ku-band case-roomed),1.2m auto-tracking flyaway antenna.1.8m fiber glass Ku-band  flyaway antenna ,1.8m fiber glass C-band flyaway antenna.It can offer a complete line of earth station antenna products and systems, with a selected range from 1.8M to 16M (C-Band, KU-Band, Ka-Band, X-band, S-band, L-band )and relevant servo equipment including antenna control system and beacon receiver. Microwave antenna, TVRO antenna,Rx antenna,Microwave components and customerized products is also provided.
Any more information please visit http://www.flyaway-antenna.com or send emails to sales@Probecom.com
