I have bought a Viasat system to watch in England.  Would it be too difficult for a complete novice to work out to set up and install or would I be best getting a proffesional in to do it?
Back to top
IP Logged
Eric Johnston
Senior Member

Posts: 2109
Reply #1 - Jul 31st, 2007 at 8:54pm
The word ViaSat refers to a US manufacturer of satellite internet modems and also to a satellite television service for Nordic countries.

If you are aiming to "watch" something then it may be the satellite television service you are referring to.  In this case note that the Sirius satellite (at 4.8 east longitude) has a Nordic beam aimed at the Nordic countries and the signal level contours over England will be low.  The level will depend on where you are located.  Near the south east coast looks OK, see below, but further west, say Wales or Cornwall you may need a 1.8m dish or even much larger.

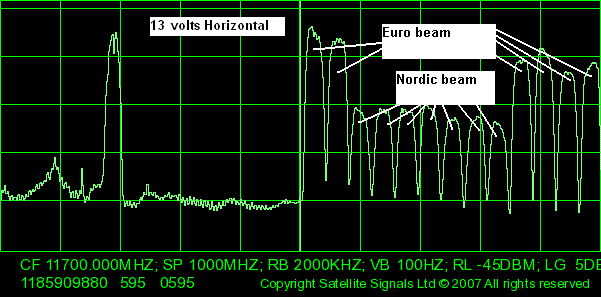

Spectrums below recorded at Chelmsford, Essex, with 85cm dish, just now on the internet using my on-line satellite spectrum analyser.



I've left it set at 13 volts = Horizontal.  You need to email me if you want the volts turned up.

The satellite location is at 595 on my antenna position encoder.

For your dish pointing data go here satellite tv dish pointing uk ireland and select 4.8 east satellite position.

Measurements above 11.7 GHz are outside the my compensated calibration range but the on-line spectrum analyser still works quite well.

Best regards, Eric.
