Modulators wanted

(Read 1638 times)
sdcomm
Member
★★
Offline



Posts: 23
Oct 4th, 2008 at 3:13pm
Looking for large number of older used modulators. Need both cut channel and frequency agile. Must be located within the CONUS.
Back to top
« Last Edit: Oct 5th, 2008 at 1:22pm by Admin1 »

IP Logged

Eric Johnston
Senior Member
★★★
Offline



Posts: 2109
Reply #1 - Oct 5th, 2008 at 1:05pm
I think possible suppliers to you will need more information to determine if their old items might be of use to you.

An agile frequency modulator might comprise simply a synthesised oscillator plus modulator chip.

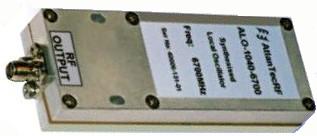

Example synthesised oscillator for freq range 1.7 - 2.2 GHz (100kHz steps):
ANS2-1700-100 1700-2200 from http://www.atlanticmicrowave.co.uk/
...more details

Example modulator for freq range 1.8 - 2 GHz:
IQBG-2000A from http://www.minicircuits.com/
Surface Mount I&Q Modulator, 50 ohm; LO Drive +10 dBm from $24.95 qty.(1-9) 1.8 to 2.0GHz
...more details

You need to provide a full technical specification for what you actually want.  Frequency range, step size, physical configuration etc.

Best regards, Eric.
