9m earth station antennas for sale

...

Antesky professional team supply high-qualified earth station antenna
www.antesky.com

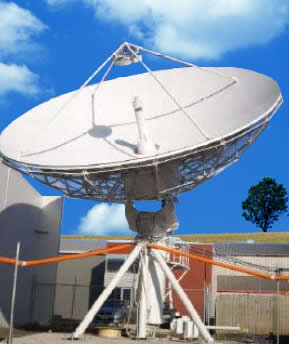

9m antenna reflector incorporates stretch-formed doubly contoured panels with matched radials and hub for ease of field alignment

Features
Meets or Exceeds CCIR 580 and INTELSAT Requirements
High G/T, Excellent Pattern Characteristics
Thermal Spaying Zinc Steel Ground Mount Assembly
C-band Antenna Operating in 800MHz Bandwidth Option
2-port, 3-port or 4-port Linear/Circular Feed
Field Changeable Feed System, Switchable Circular to Linear C-band
Antenna Az 0-360deg Continuous Pointing Range
specification
9m C/Ku band earth station antenna specification
ELECTRICAL SPECIFICATION:
Operating Frequency, GHz
C-Band:Rx(3.625-4.2)      Tx(5.85-6.425)
Ku-Band:Rx(10.95-12.75) Tx(14.0-14.5)
Polarization: Linear/ Circular      Linear
Radiation Pattern:First Sidelobe      less than -14, Meet ITU-RS.580-5 and other requirements
MECHANICAL SPECIFICATION:
Azimuth      ±90° (Continuous)
Elevation      0°-90°(Continuous)
Polarization      180°(Continuous)
Finishes  Reflector Surface  Pedestal & Back Structure      Aluminum panels with high-diffusing white paintThermal Spraying Zinc
ENVIRONMENTAL SPECIFICATION:
Operational Wind      72km/h Gusting to 97km/h
Survival Wind      216km/h
Temperature      - 40°C -+ 60°C
Relative Humidity      100%
Solar Radiation      1135Kcal/ h/ m2
Seismic (Survival)      0.3g (H), 0.15g (V)
★Details information★
please get the details information from "www.antesky.com/

ANTESKY SCIENCE TECHNOLOGY INC. (www.antesky.com)is a specialized company engaged in the design and manufacture of satellite communication earth station antenna,SNG antenna, on-the-move antenna, microwave antenna,2.4m Earth Station Antenna,3m Earth Station Antenna,3.7m Earth Station Antenna,4.5m Earth Station Antenna,6.2m Earth Station Antenna,7.3m Earth Station Antenna,9m Earth Station Antenna,11m Earth Station Antenna,11.3m Earth Station Antenna,13m Earth Station Antenna,16m Earth Station Antenna,18.5m Earth Station Antenna,20m Earth Station Antenna,50m Earth Station Antenna,1.0M SNG Antenna,1.8M SNG Antenna,2.4M SNG Antenna,On-the-move antenna 0.8m, 1.2m, 1.5m .

Contact person:Byron Xue
e-mail:sales@antesky.com
MSN: antesky@hotmail.com
tel 0086-29-88352448
fax 0086-29-88352334
Web: www.antesky.com
Company: Antesky Science Technology Inc.
Add:Taibai South Road, Xi'an, Shaanxi, China
