Tooway / Viasat Surfbeam 2 web interface

(Read 86275 times)

mailliw

Member
★★
Offline

Posts: 6

Jul 9^th, 2011 at 10:05pm

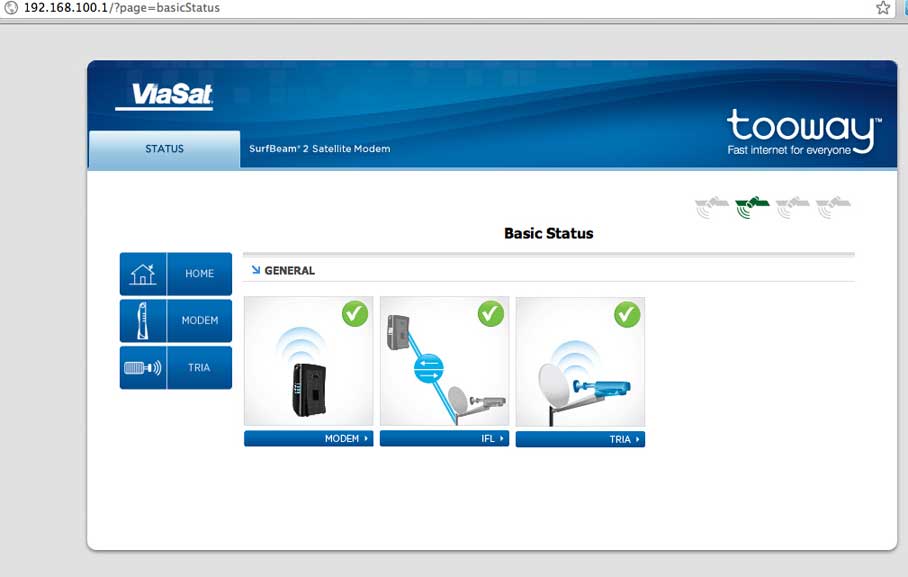

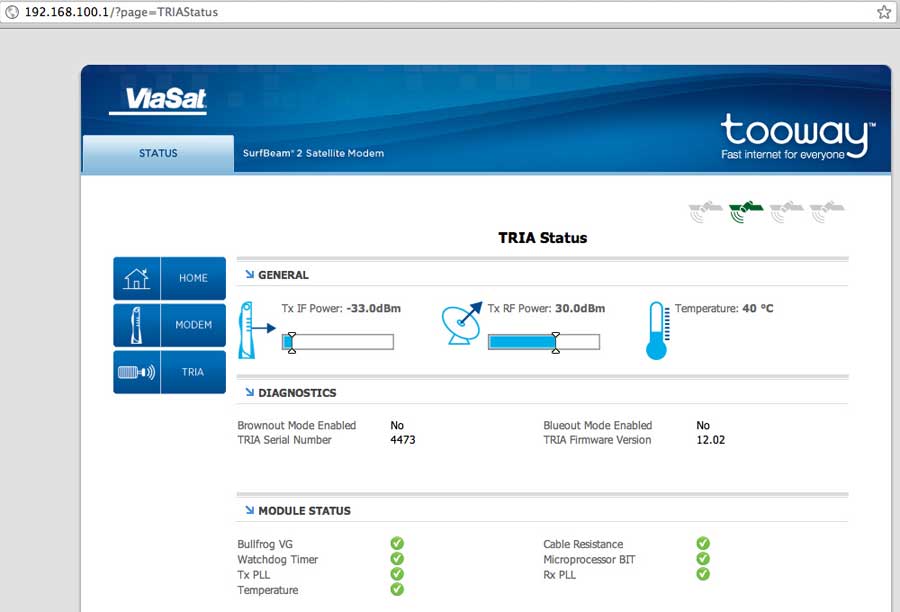

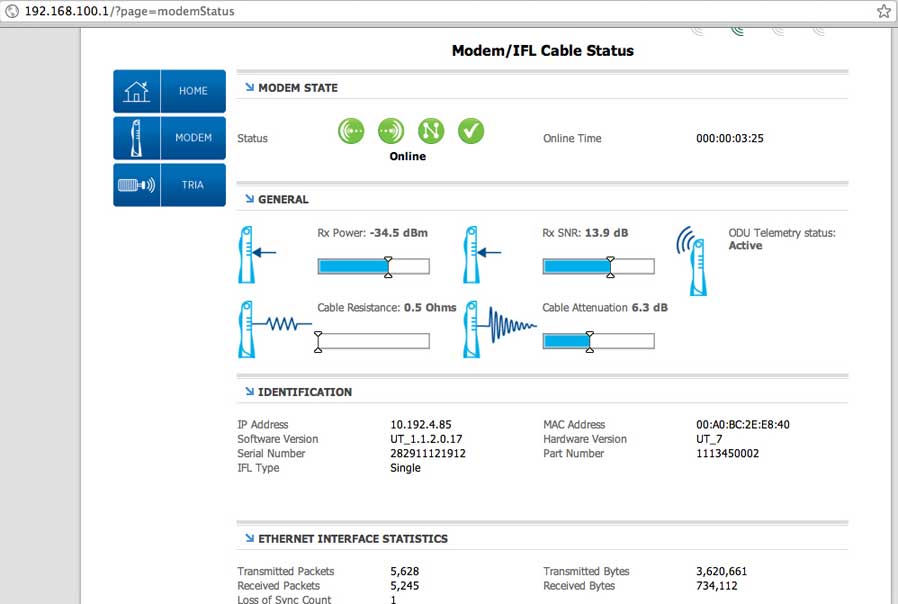

After a bit of digging, I've found the web interface for the Surfbeam 2 modem. You can reach it at 192.168.100.1 when plugged into its ethernet port. Best thing to do is turn the modem off, plug the cable in, turn it back on and your laptop/PC should be assigned a temporary IP in the range 192.168.100.x - go to the router's address quite quickly, before it gets online, as your IP will soon change to the dynamically populated one provided by Skylogic.

There's quite a lot of useful info there though.

Original images:
https://farm7.static.flickr.com/6131/5919874696_c1a6581967_b.jpg
https://farm7.static.flickr.com/6026/5919313681_9da9916de7_b.jpg
https://farm7.static.flickr.com/6141/5919313325_edca04bbc6_b.jpg

*** Note: images reduced in size and quality and resaved by forum admin to speed up download. ***

« Last Edit: Jun 8^th, 2013 at 5:21pm by Admin1 »

IP Logged

resco

Member
★★
Offline

Posts: 17

Reply #1 - Jul 9^th, 2011 at 11:29pm

Thanks for the screen shots of the web interface.Done my first Tooway KA2 install yesterday and would like to know if the TX and RX figures are acceptable.
Like the first KA & KU system these modems give very limited installer info so would like to know what a well aligned dish should be showing when online.
Where we where had no cellphone reception so I couldnt use the Tooway alignment app so was informed by BW that we where on orange beam.
Now back at home the alignment tool advises Blue beam 1.
Is this likely to cause the customer any problems

WWW

IP Logged

Eric Johnston

YaBB Moderator
★★★★★
Offline

Posts: 2109

Reply #2 - Jul 10^th, 2011 at 8:11am

Regarding pointing, the really important thing is to peak up to the exact peak. The actual level you measure will depend on your location relative to the nearest satellite spot beam centre. To get your dish pointed perfectly move off either way (in both azimuth and elevation) and find two exactly equal degraded points, then put to the exact centre.

Your dish works in Ka band (20/30GHz) and has very narrow beam, particularly at the transmit uplink frequency so exact central pointing is important. In clear sky conditions the signal is very strong and the system will work, on receive, over a wide range of antenna mispointing. This is very misleading to the naive installer - just getting a good enough signal is NOT acceptable. You must actually get to the beam centre. The top of the receive beam is rounded and finding the centre is not at all obvious. You must get to the centre so that the transmit beam, which is narrower, is also pointed well. The system will then continue to operate in moderate rain. If you are mispointed the system will fail as soon as it rains.

Best regards, Eric.

« Last Edit: Jun 10^th, 2019 at 7:13pm by Admin1 »

IP Logged

Heathy65

Member
★★
Offline

Posts: 13

Reply #3 - Jul 28^th, 2011 at 1:59pm

[quote author=mailliw link=1310245551/0#0 date=1310245551]After a bit of digging, I've found the web interface for the Surfbeam 2 modem. You can reach it at 192.168.100.1 when plugged into its ethernet port. Best thing to do is turn the modem off, plug the cable in, turn it back on and your laptop/PC should be assigned a temporary IP in the range 192.168.100.x - go to the router's address quite quickly, before it gets online, as your IP will soon change to the dynamically populated one provided by Skylogic.
[/quote]
Hi, You're quite correct that once the system has connected to the Tooway network that your 192.168.100.X address will change to a public address. I expected that would mean that the 192.168.100.1 address would be unreachable then but I've found that I can still connect to it (not sure how at the moment!). Your post implies that you can't access your satellite modem GUI once the connection is established, is that the case? Many thanks.

IP Logged

mailliw Member ★★ Offline Posts: 6	Reply #4 - Dec 29^th, 2011 at 11:23pm Hi there, No idea why I didn't reply to this - sorry. In answer to your question, no, the moment it goes online I can't get access to 192.168.100.1. I'm surprised you can - would you mind posting your ipconfig or network info here? Perhaps the subnet mask is different. Thanks Will
Back to top	IP Logged

creusetec Member ★★ Offline Posts: 27	Reply #5 - Dec 30^th, 2011 at 7:03pm You can get acces to the modem page any time just like any other router by typing its address online or not.
Back to top	WWW IP Logged

zg3409

Member
★★
Offline

Posts: 7

Reply #6 - Jan 17^th, 2012 at 9:01am

There is also a:
https://192.168.100.1/install/

hidden menu which is not linked from the main menu. This menu appears only once on setup. After that you need to type in the slash install. This then allows you to change which "colour" beam you are on.

This is helpful if you are on the edge of two beams and want to see which one is better.

However you may need to re-register your unit with tooway if using a different beam although I am not certain on this.

Regards

IP Logged

ex-para

Member
★★
Offline

Posts: 7

Reply #7 - Sep 18^th, 2018 at 5:26pm

I have finally got my TooWay system activated and is now on line, they sent me a replacement Modem and Tria without any quibbling but it was the Modem giving me the problem, I was also having trouble with explorer on Win10 and was told to use Firefox or Opera but none of these would connect so I tried Linux ( Ubuntu ) although I was told Linux was a no no and it connected with no settings to change at all. I now need a wireless router for wifi which is the main thing I needed the Satellite and noticed you mentioned a Linksys E1200 Wireless Router and how to have it working and was thinking of buying this model. Thanks for all the replies.

IP Logged
