Downstream - Low signal

(Read 10841 times)
Luque
Member
★★
Offline



Posts: 9
Nov 11th, 2013 at 3:50pm
Hello ,
A few days ago the downstream signal fell to 6 or 7 dB .
Upstream is fine - 11 dB .
Antena did not move from her position .

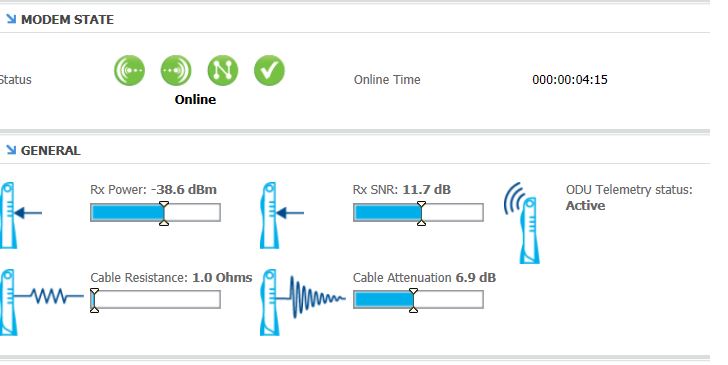

I attach the signal level in the last 2 days .
Can you help me ?
Thanks
Back to top
« Last Edit: Nov 12th, 2013 at 8:29am by Luque »


IP Logged

Luque
Member
★★
Offline



Posts: 9
Reply #1 - Nov 12th, 2013 at 8:33am
In a few days I'll go to my client to adjust the antenna , maybe this is the problem .
Meanwhile , maybe can get a tip from someone who had the same problem .
Thanks !
Back to top


IP Logged

Hipolito Gonzalez
Senior Member
★★★
Offline



Posts: 105
Spain
Reply #2 - Nov 13th, 2013 at 12:00pm
Hello my friend...

1.- How did you get this graphics? Do you enter in the modem?

2.- The SNR is not the SIGNAL. SNR is the distance between the signal and the NOISE. Is the separations.....

Sometimes, the noise is closer to the signal, for the weather, and the SNR is not only in your side, some time ago, I had ( and a lot of people ) a signal cutoff, the SNR was close to 1, and the problem were in Turin, Storms.... but in our side, the antennas were ok...
Back to top


...   ...
WWW | MSN | Skype/VoIP | ICQ | YIM
IP Logged

Luque
Member
★★
Offline



Posts: 9
Reply #3 - Nov 21st, 2013 at 9:59am
Quote:
Hello my friend...

1.- How did you get this graphics? Do you enter in the modem?

2.- The SNR is not the SIGNAL. SNR is the distance between the signal and the NOISE. Is the separations.....

Sometimes, the noise is closer to the signal, for the weather, and the SNR is not only in your side, some time ago, I had ( and a lot of people ) a signal cutoff, the SNR was close to 1, and the problem were in Turin, Storms.... but in our side, the antennas were ok...



Hello ,

1. About graphics :
I entered the portal page: https://external.skylogicnet.com/oss
You need a username and password

2. The SNR is not the SIGNAL .... ?!!!!?????
I never said this thing !!!!
In my graphic are the downstream and upstream parameters , this parameters you find in OSS Portal .

I think you did not understand my problem .
I have problems with downstream parameter that is too small . I have no problem with SNR . My SNR is ok .
Back to top
« Last Edit: Nov 21st, 2013 at 1:55pm by Luque »

IP Logged

Admin1
YaBB Admin
★★★★★
Offline



Posts: 1203
Reply #4 - Nov 21st, 2013 at 7:36pm
I think the misunderstanding is due to the word 'signal' in the original posting, which should have read 'SNR', so as to correspond with the graphic.

As I see it, there IS a problem with the downstream SNR. It is too low.  The graphic suggests it should be at least 10 dB. ( green dashed line)
Back to top

WWW
IP Logged

Hipolito Gonzalez
Senior Member
★★★
Offline



Posts: 105
Spain
Reply #5 - Dec 7th, 2013 at 10:42am
Yes, I misunderstanding. I'm sorry.
How did you get access to this portal?

Is very interesting this graph.
Back to top


...   ...
WWW | MSN | Skype/VoIP | ICQ | YIM
IP Logged

pladecalvo
Senior Member
★★★
Offline



Posts: 78
Valencia, Spain
Reply #6 - Dec 27th, 2013 at 7:05pm
The link he gave doesn't work.
Back to top


IP Logged

bigdishsat
Member
★★
Offline



Posts: 46
France
Reply #7 - Dec 27th, 2013 at 10:48pm
Quote:
The link he gave doesn't work.


Actually, that link does work but you have to be authorised by Skylogic to access the OSS portal ... it's only available to a handful of resellers.
Smiley
Back to top

WWW
IP Logged

pladecalvo
Senior Member
★★★
Offline



Posts: 78
Valencia, Spain
Reply #8 - Dec 28th, 2013 at 6:02am
Quote:
Quote:
The link he gave doesn't work.


Actually, that link does work but you have to be authorised by Skylogic to access the OSS portal ... it's only available to a handful of resellers.
Smiley
OK thanks. The great masses of the unwashed are not admitted!  Grin
Back to top


IP Logged
