can't assigned XLC-10 in Chassis 15001

(Read 2512 times)

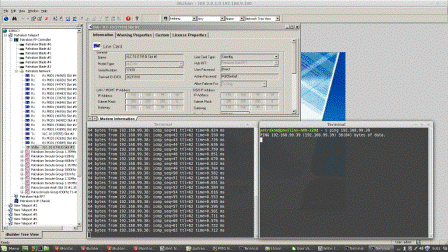

Ex Member Ex Member	Sep 24^th, 2014 at 3:50am I can't assigned XLC-10 in Chassis 15001. I have already lowered the speed from 1000 Mbps to 100 Mbps as required cause the type of the chassis. What usually happen when linecard can't assign to chassis? I can't ping to IP GIG0 (is that allowed?)
Back to top	XLC-10_repair_test_satsig1.gif (56 KB \| 326 ) IP Logged

Mwafrika Member ★★ Offline Posts: 20 Kenya	Reply #1 - Oct 5^th, 2014 at 5:21am Hello Marcel, What is the serial number of the HLC? Is there any error message?
Back to top	M WWW \| YIM IP Logged

fluffymassive

Senior Member
★★★
Offline

Posts: 67
SA. Australia

Reply #2 - Oct 8^th, 2014 at 5:44am

what settings do you have for your switchport? auto? if so change it to 100mbps.

this is from the manual:

Under GIG0 IP Address:
a. Enter the IP address for downstream data from the protocol processor to the network.
b. Use the drop-down menu to set the Speed of your GIG0 port to 100 Mbps or 1000
Mbps.
Note: Your switch and chassis must support the selected port speed. (Older iDirect
chassis do not support 1000 Mbps.) Also, you must explicitly configure the port
speed on your switch to be the same as the port speed selected for the line
card. Do not set the switch to auto-negotiate.

IP Logged
