Skylinx SCPC Scientific Atlanta information request

(Read 6346 times)

deneb86 Member ★★ Offline Posts: 2	Dec 3^rd, 2015 at 9:56pm Hello, I am writing to get some information about recycled equipment, which were not being used since I want to make them work. It is a Scientific Atlanta udama skylinx.dds, I have got the idu and its odu.The antenna is a 1.8m prodelin.Has anybody got the manual or any information of these pieces of equipment? I wish you could help me! Thanks!
Back to top	« Last Edit: Dec 4^th, 2015 at 6:43pm by Admin1 » IP Logged

Admin1

YaBB Admin
★★★★★
Offline

Posts: 1206

Reply #1 - Dec 4^th, 2015 at 6:38pm

Can you put full details and maybe pictures of indoor and outdoor equipments to eric@satsig.net

I might be able to help.

I have some experience with a 4 board chassis, an RF board, channel unit boards, Ku band outdoor unit.

If yours is similar, then it is conceivable that a low bit rate point to point data or voice system could be set up with two terminals. Do you have several units? Do you have antennas and space segment (transponder bandwidth) available?

Read here Skylinx voice call/data VSAT system I have no idea if the Eutelsat DSAT-160 service, hubbed out of Italy is still operational.

Best regards, Eric

WWW

IP Logged

deneb86

Member
★★
Offline

Posts: 2

Reply #2 - Dec 13^th, 2015 at 5:07pm

Hello,

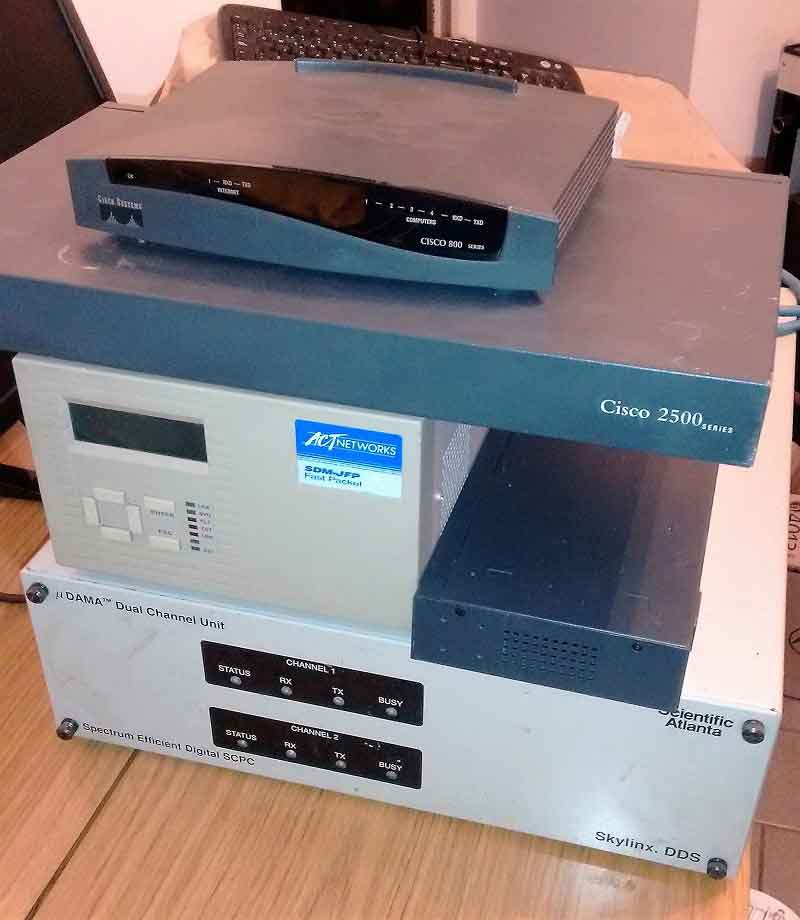

Thank you very much for your reply and willingness as I am a beginner in the area. Let me tell you that I've got the following pieces of equipment ofwhich I attach some pictures to the given email address.

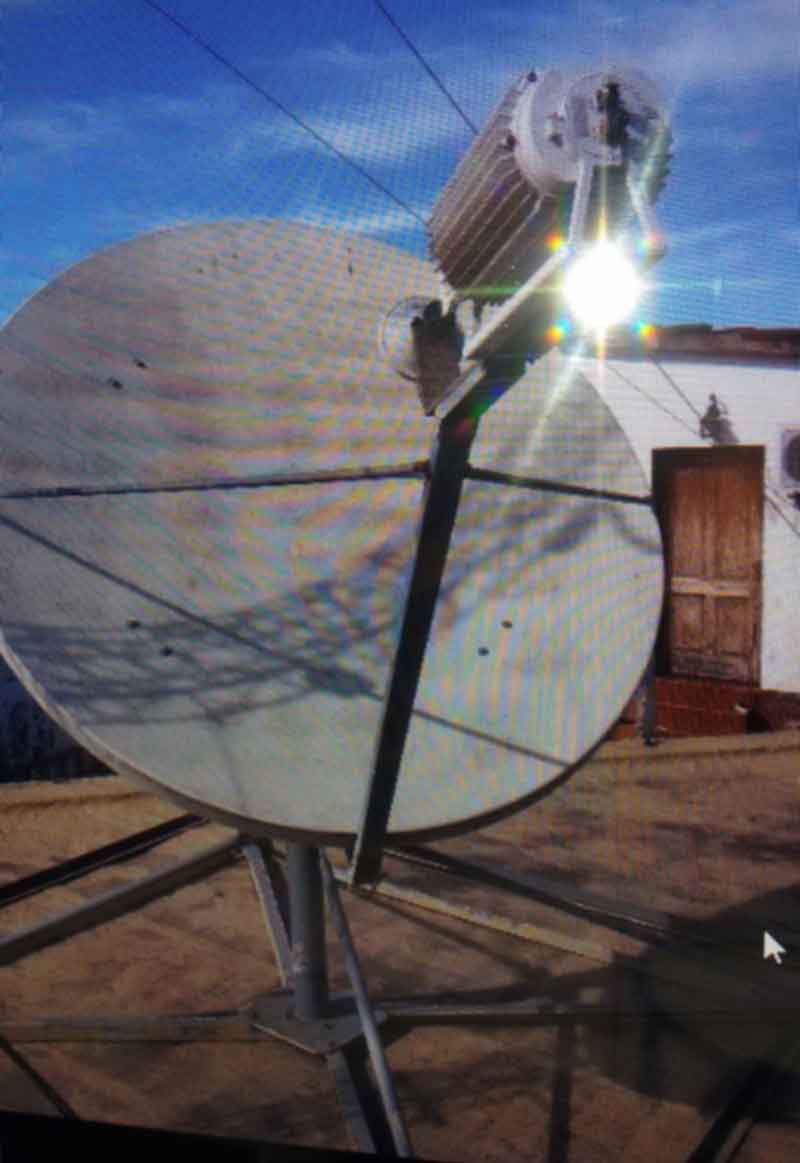

- Antenna Prodelin 1,8 m
- Scientific Atlanta ODU
- Scientific atlanta SCPC udama skylinx.dds IDU
- Act networks jdm
- Router cisco 2501
- Router cisco 841

I'd like you to guide me how to use these pieces of equipment since I've not got satellite internet subscription as it is expensive. I'd like to achieve some kind of link experimentally with the aim of learning in a practical way. I heard that it is likely to download satellite images free and legally. Is it true? Any help or guidance would be of great help!

IP Logged

Admin1

YaBB Admin
★★★★★
Offline

Posts: 1206

Reply #3 - Dec 13^th, 2015 at 7:02pm

So that others can see what you have, here are the relevant pictures.

I am sorry to tell you this, but:

I have no idea how to operate it. Your Skylinx microDAMA hardware is a different version from what I worked on (8000 series Skylinx).

As far as using it is concerned, it would only work in a network with a matching teleport hub equipment and presumably many other sites similar to yours for other users of the network to whom you might wish to communicate. It could have been used by a company with a need for phone calls (8 kbit/s) and low speed data between a dozen remote offices scattered across Atlantic, Africa, Middle East and Indian Ocean islands. I suspect your equipment is from some obsolete network that has been closed down and the equipment scrapped.

If you want a legal and least expensive satellite internet access service: if in N.America or Europe investigate consumer level Ka band systems using Viasat Surfbeam terminals (Exede or Tooway networks) or Hughes HN9200 terminals (Hylas network).

« Last Edit: Dec 14^th, 2015 at 10:33am by Admin1 »

WWW

IP Logged

Admin1

YaBB Admin
★★★★★
Offline

Posts: 1206

Reply #4 - Aug 9^th, 2021 at 11:43am

Does anyone still have an operating Skylinx network using kit as shown here:

The picture shows a telephone call in progress between a phone plugged into Channel Unit 2 and a phone plugged into Channel Unit 3.

The lower chassis slot 4, has the RF board which connects to the LNB and BUC at the antenna. More chassis units, each with 4 slots, provide additional slots, for one RF board and say up to 3, 7 or 11 Voice/Data channel Units.

The spectrum analyser shows the two active carriers (each 8 kBit/s G729). A phone call may be dialed from any CU to any other CU in the network of several VSAT sites. Each site has several CU, some Voice only, some Data only or some Voice or Data.

See: https://www.satsig.net/skylinx.htm

Best regards, Eric.

« Last Edit: Aug 9^th, 2021 at 1:12pm by Admin1 »

WWW

IP Logged

softbit Member ★★ Offline Posts: 3	Reply #5 - Nov 8^th, 2024 at 12:38pm hi pl help if u have Looking for SKylinkx 8000 satellite router ravi
Back to top	IP Logged

softbit Member ★★ Offline Posts: 3	Reply #6 - Nov 8^th, 2024 at 12:39pm hi pl help if u have Looking for SKylinkx 8000 satellite router ravi
Back to top	IP Logged

Admin1

YaBB Admin
★★★★★
Offline

Posts: 1206

Reply #7 - Nov 9^th, 2024 at 4:27pm

For clarification, Skylinx.dds (uDAMA) is different from Skylinx 8000 chassis system.

If anyone knows of old closed Skylinx networks or of operational Skylinx networks, of either type (uDAMA or 8000 chassis) please tell us here as it is clear that people want to get hold of pre-used or old abandoned units. So if you have old items or spares boards please say.

This applies to both indoor units and the outdoor RF modules.

Any unwanted Skylinx manuals or instructions also welcome as I don't remember much about them.

The Skylinx 8000 chassis system:
1 or more chassis at each remote site.
Each chassis has 4 slots.
Each site needs one RF board and 1 or more Voice Channel Units or Data Channel Units.

Does anyone know where any hubs are/were located ?

Best regards, Eric.

WWW

IP Logged
