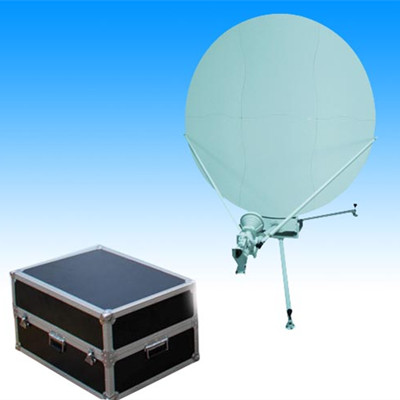

1.2m Ku Band Backpack Flyaway Portable Antenna

(Read 1157 times)
probecom
Senior Member
★★★
Offline



Posts: 58
Nov 30th, 2018 at 3:11am
Applications
Sudden public events and all kinds of disasters on-site information gathering
Disaster relief
Public security, military, government, oil, water conservancy, electricity, finance and other important sectors of the country
The remote areas and the vast rural areas out of coverage
Field operations, exploration, military police and news media
Components
Single Offset Antenna
Azimuth & elevation turntable
Features
(1) Carbon fiber antenna reflector with light weight, high precision and high efficiency, corrosion resistance and other characteristics, it ensured the antenna
in the normal operation under harsh environment in greatest degree.
(2) Compact structure, Lightweight, portable, rapid deployment, high performance, a person can install within 5 minutes, available in a backpack.
(3) The latest design of the Ku-band satellite antenna, being compact and robust, cost-effective can be used in the fast and reliable satellite communications.
(4) Designed specifically for field use, regardless of when and where, it can quickly transfer high-quality broadband content.
Technical Specification
RF Specifications
Antenna Aperture      1.2m
Operation frequency      Rx      13.75-14.5GHz
     Tx      10.95-12.75GHz
Gain      Rx      >43.0 dBi
     Tx      >42.0 dBi
Polarization      Linear
Cross-polarization      Tx      >30dB
     Rx      >30dB
VSWR      Tx      1.25︰1
     Rx      1.25︰1
3dB beam width      Tx      1.2°
     Rx      1.32°
Power capacity      250W
Feed Interface      WR75
Tx/Rx Isolation      Rx >40dB   Tx >85dB
Sidelobe(1°≤θ<20°)      first sidelobe <-18 dB

Mechanical Specifications
Antenna Type      Offset antenna
Main reflector material      Carbon Fiber
Weight      17 Kg
Elevation      10°--85°
Azimuth      ±45°
Polarization      ±90°
Environment Specifications
Wind load operational      10m/s operational status
13m/s—20m/s (survival status)
Temperature operational      - 40℃-+70℃


SHAANXI PROBECOM MICROWAVE TECHNOLOGY CO.,LTD
ADD:12TH FLOOR,INLAND PORT MANSION,INTERNATIONAL TRADE AND LOGISTIC PARK ,XI`AN CHINA ZIP CODE:710026
TEL:+86 2988852619
FAX:+86 2988860260
