CrazyScan or others spectrum meters

(Read 296 times)
EnoSat
Member
★★
Offline



Posts: 3
Slovakia
May 10th, 2020 at 1:53pm
Hi,
use some guy in Reunion location some PCI/USB card or spectrum meter for verification active transponders from 16 East?

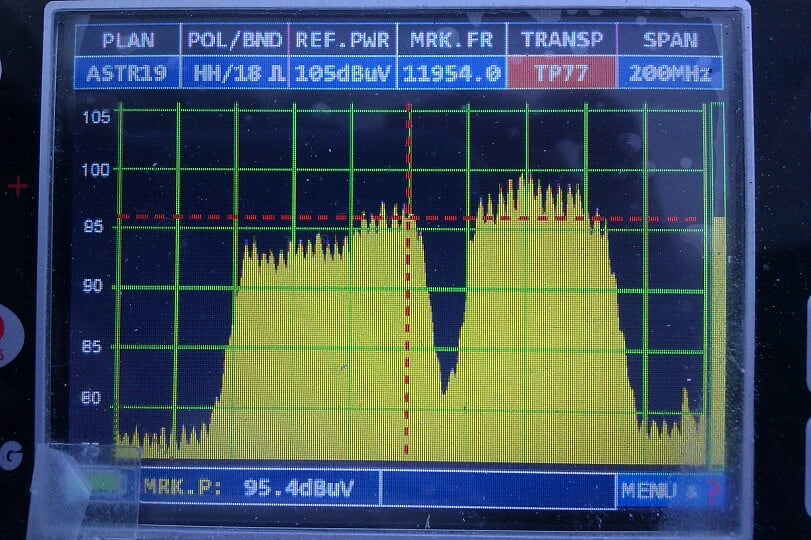

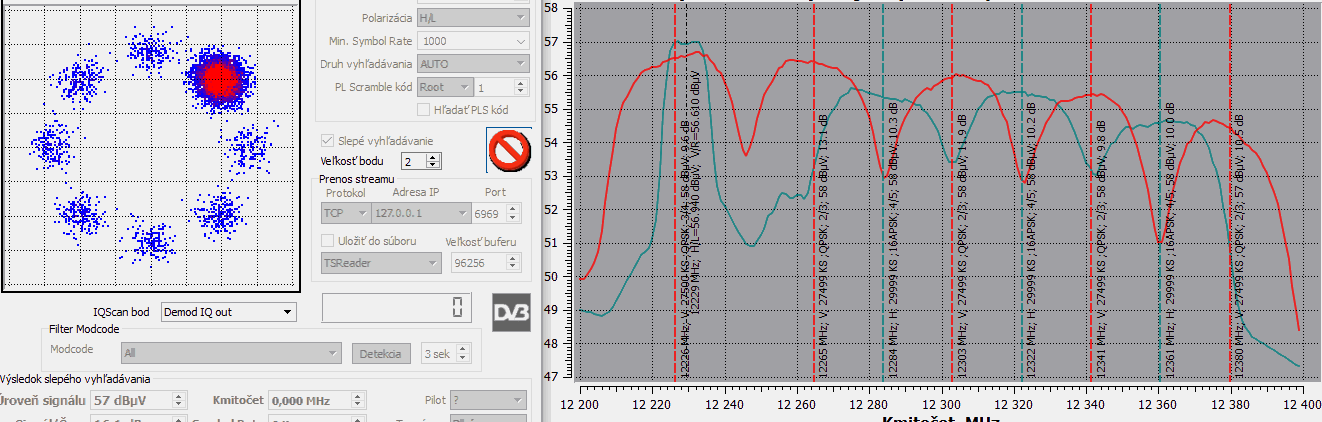

etc.sample picture
...
Back to top
« Last Edit: May 10th, 2020 at 4:46pm by EnoSat »

IP Logged

Admin1
YaBB Administrator
★★★★★
Offline



Posts: 989
Reply #1 - May 10th, 2020 at 5:28pm
Most impressive.

What kind of PCI/USB card is recommended?.

Do you need a RF to USB device like HACKRF https://greatscottgadgets.com/hackrf/one/ ?

It looks like a good project to try.

Best regards, Eric.
Back to top

WWW
IP Logged

EnoSat
Member
★★
Offline



Posts: 3
Slovakia
Reply #2 - May 10th, 2020 at 11:06pm
CrazyScan project momentary supportred card:
Full supported satellite devices (RFScan,BLScan,IQScan,SignalInfo feature)

STV091X based
TBS 6983, 6903 Dual PCI-E, 6908,6905 Quad PCI-E
TBS 5927 USB2.0
Si2183 based
TBS 6522,6528,6590 PCI-E
TBS 5520SE, 5580 USB2.0
STV090X based
Omicom S2 PCI, Omicom S2 Pro PCI
TT S2-1600 PCI
Prof 7301 PCI, 7500 USB2.0, 8000 PCIE
TBS 6925 V1.x & 2.x, 6926 PCI-E
TBS QBox2(5920), QBox-CI(5980), 5925 USB2.0
Technisat SkyStar2 eXpress HD PCI-E
NetUP Dual DVB-S2-CI PCI-E - Require Netup BDA driver with I2C-access interface !
KNC1 TV-Station DVB-S2 Twin PCI-E
BlackGold 3630, 3600, 3595
DVBWorld DW2104A,B USB2.0 - Only with CrazyBDA driver !
TMAX TAS210x based
TT S2-4100 PCI-E
TBS 8922 PCI
TBS 5922(SE), 5990 USB2.0
TBS 6922(SE), 6928(SE), 6991(SE), 6982, 6985, 6902, 6904, 6910 PCI-E
STV0288 based
TBS 8910/Prof 6200/TeVii S420 PCI
TT S-1501 PCI
TBS QBox(5910) USB2.0, Prof 1100 USB2.0 - Only with CrazyBDA driver !
Zarlink ZL10313 (Intel CE6313) based
Compro S300, S350 PCI
Avermedia A706 PCI
Avermedia A707 PCI-E
TeVii S630 - Only with CrazyBDA driver !
Partial supported satellite devices (RFScan,IQScan,SignalInfo feature)

STB0899 based
TT S2-3200 PCI, S2-3600/3650 USB2.0
Pinnacle PCTV 452e USB2.0
TDA10086 based
TT S-1401 PCI, S-2400 USB2.0
Technisat SkyStar USB2.0 Plus (TT S-2400 OEM)
Pinnacle PCTV 400e, 450e USB2.0
Partial supported satellite devices (RFScan,BLScan2,SignalInfo feature)

Montage DS3000/2, DS3103 based
TeVii S464 PCI, 470/471 PCI-E, 660/662 USB2.0.
DVBSky S850/950/950CI/952/T9580 PCI-E, S860/960 USB2.0
TT S2-4600 USB2.0.
StarBlazer SB340 - Only with CrazyBDA driver !
...
...
