SALE: GATR 1.8m inflatable Satellite antenna system Ku band VSAT

(Read 164 times)
Admin1
YaBB Administrator
★★★★★
Offline



Posts: 969
Jul 2nd, 2020 at 1:33pm
I've been sent some pictures of the various items that comprise this GATR antenna system for sale.  Below each image I have tried to identify what the items are.  If you need clarification please  email me eric@satsig.net and I will pass the message on to the present owner.

See images below:
...

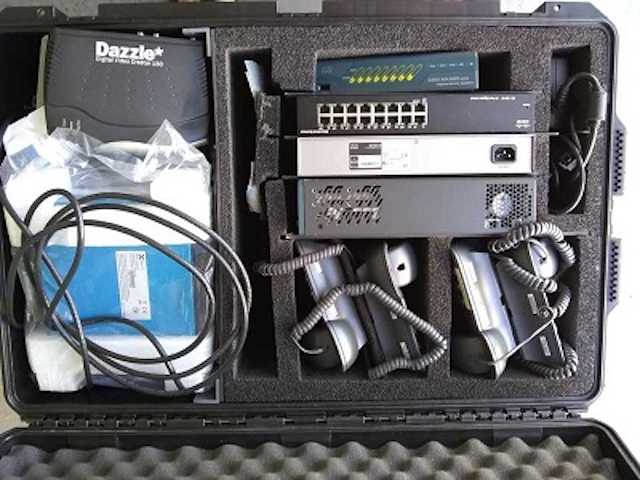

CISCO ASA 5505 Adaptive Security Appliance
Cisco Small Business SG 100-16 16 port Gigabit switch
Cisco Small Business SG 100-16 16 port Gigabit switch (rear view of a second unit ?)
Side view of box ?. Cooling vent and fan. Blue front panel ?
Two telephones

...

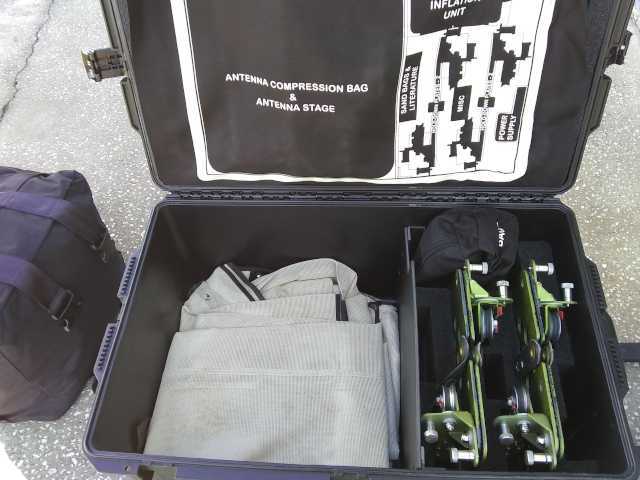

Antenna compression bag and antenna stage
Sand bags and literature
Hold down plates, 2x 2x Power Supply

...

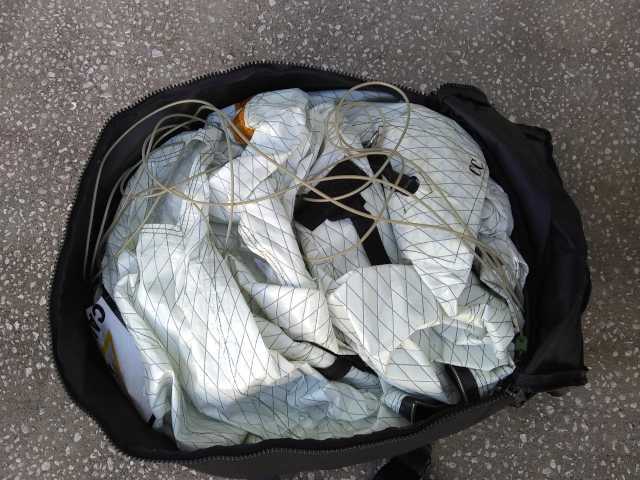

Inflatable bag

...

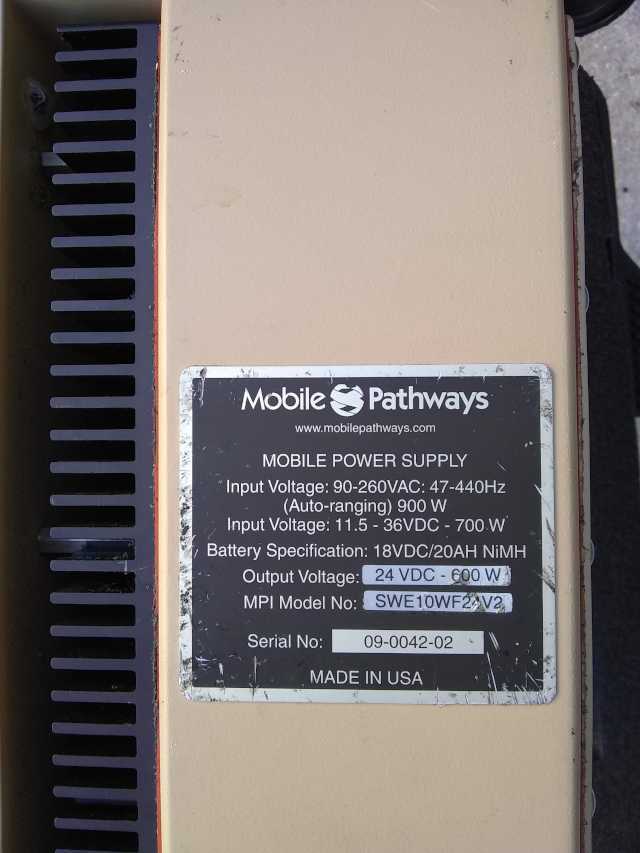

Power supply Input 90-260V AC or 11.5-36V DC.  Output 24VDC 600W

...
Three Ku band receive LNBs
3W Ku band transmit BUC 13050 MHz LO freq.

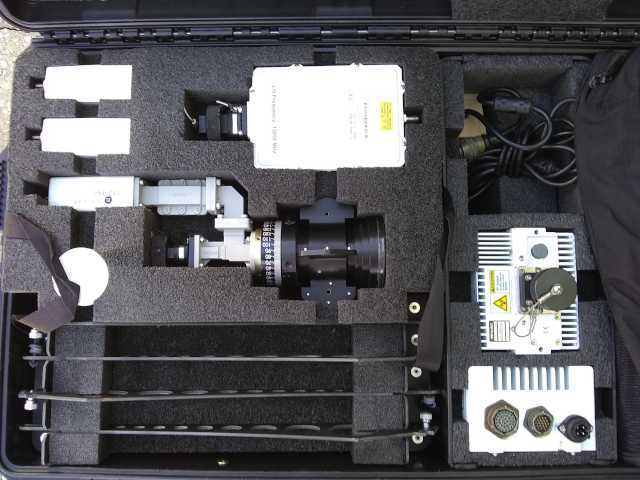

Transmit reject filter/OMT Feed assembly with precision polarisation scale.
Four feed assembly support legs.
16W Ku band transmit BUC
White block with connectors : Upconverter perhaps ?

...
Unknown items - box and cylindrical device possibly. Maybe same as image three below.

...
Cisco software disks and GATR manuals

...

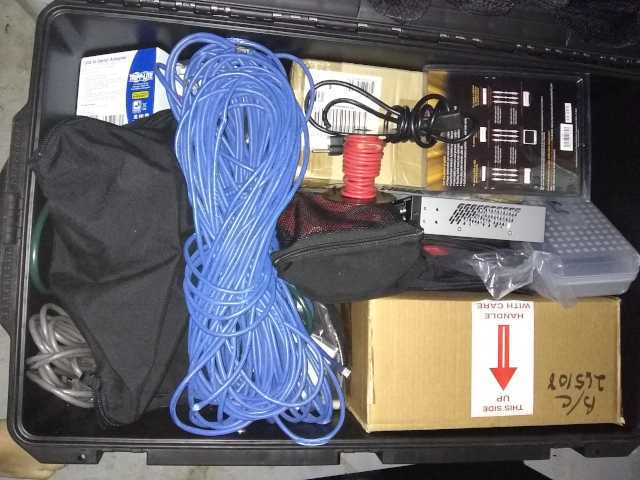

Assorted cables
USB to serial adaptor
Cable interconnectors
Metal box with ventilation slots

...

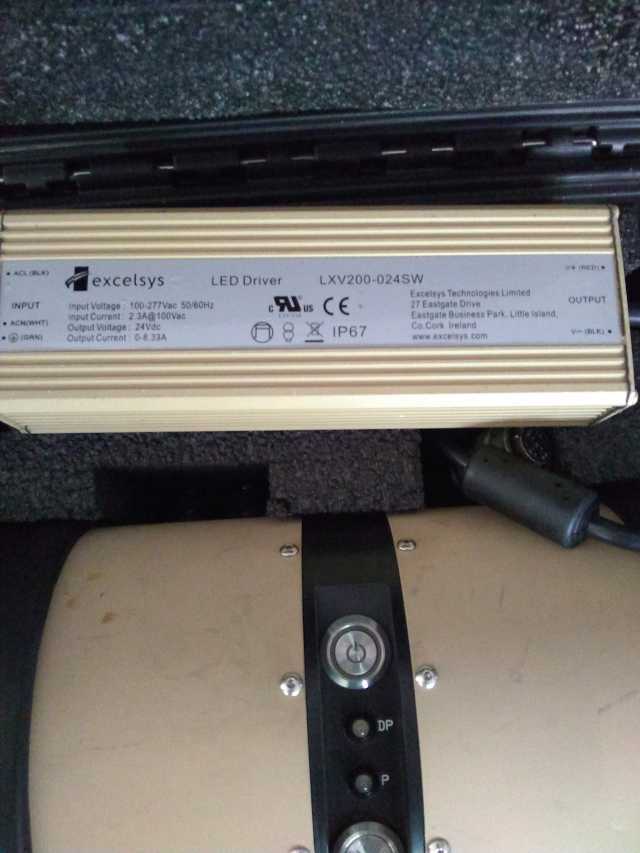

LED driver AC in 24V out

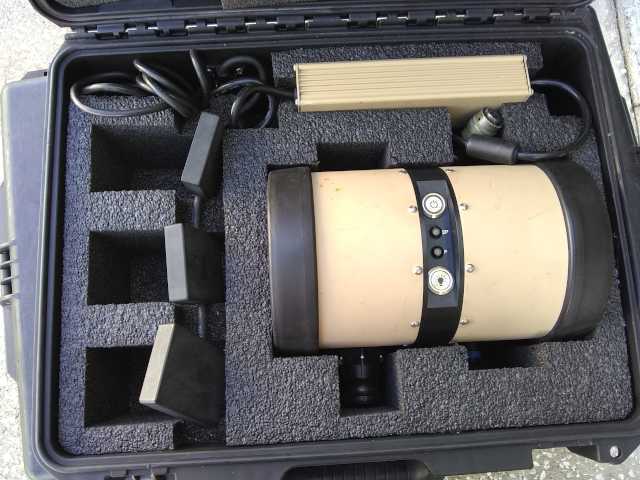

Unknown cylindrical device

...

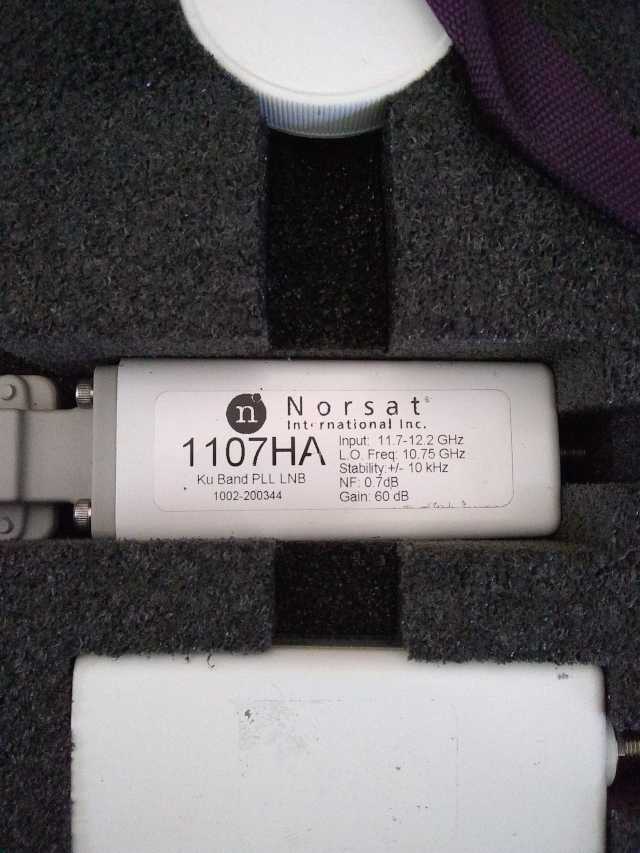

Norsat LNB 1107HA 11.7-12.2 GHz PLL 10.75 +/- 10kHz.
Unknown LNB

...

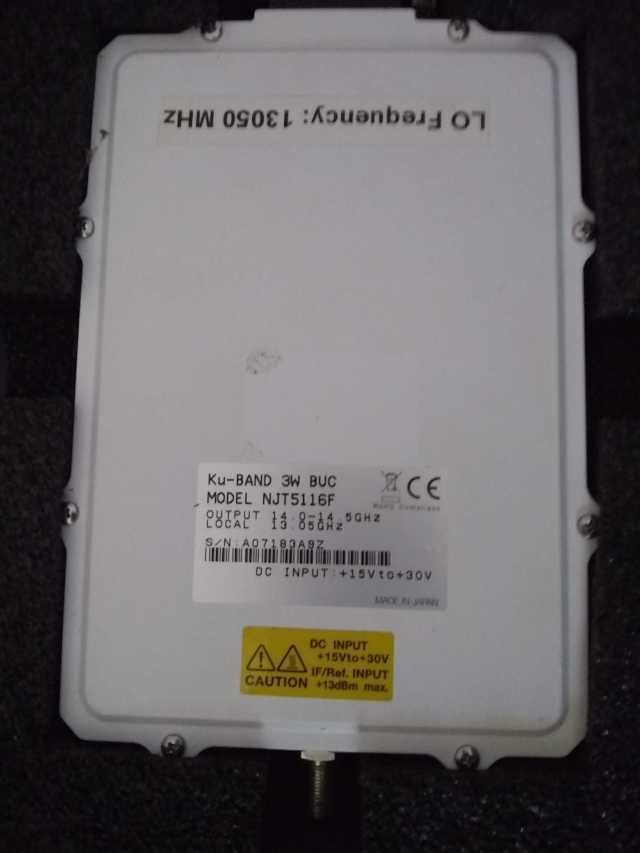

Ku band 3W BUC NJT5116F   LO 13050 MHz

...

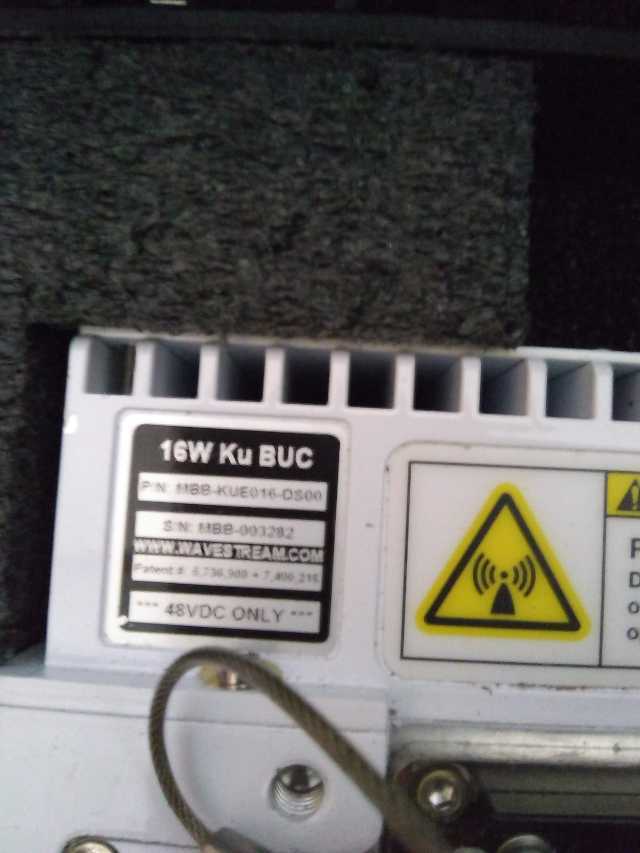

16W Ku band BUC Wavestream 48V

...

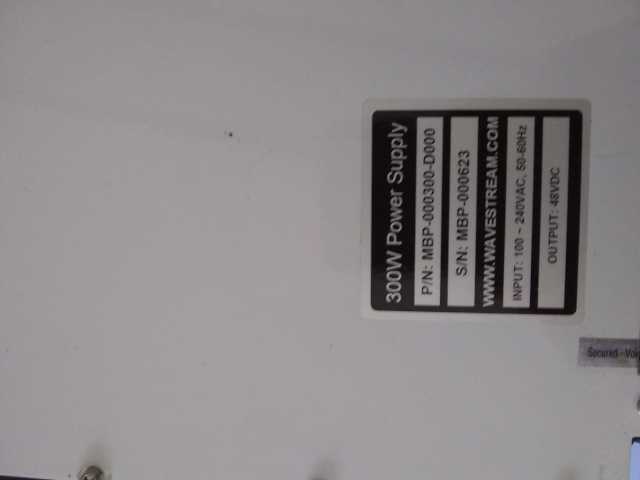

300W power supply Wavestream AC in, 48V out

...
LED driver

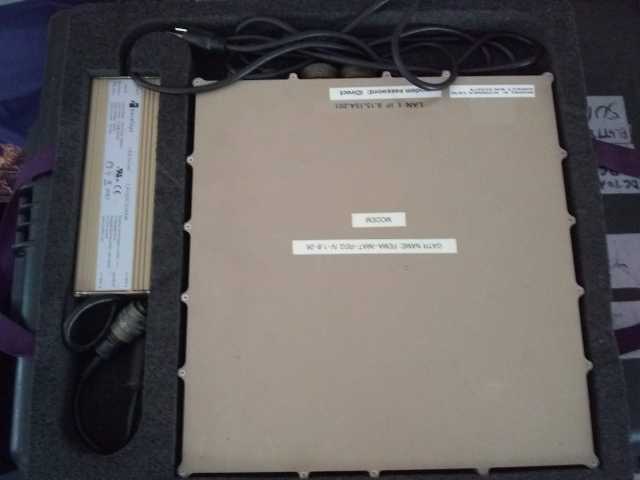

Large modem - possibly iDirect modem registered to FEMA hub gateway

...

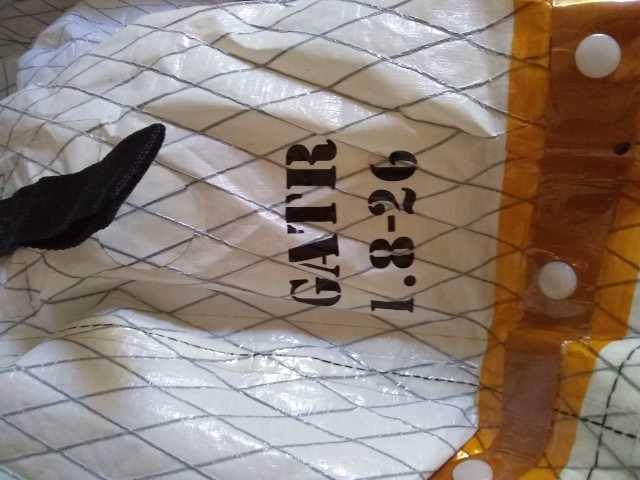

Inflatable antenna

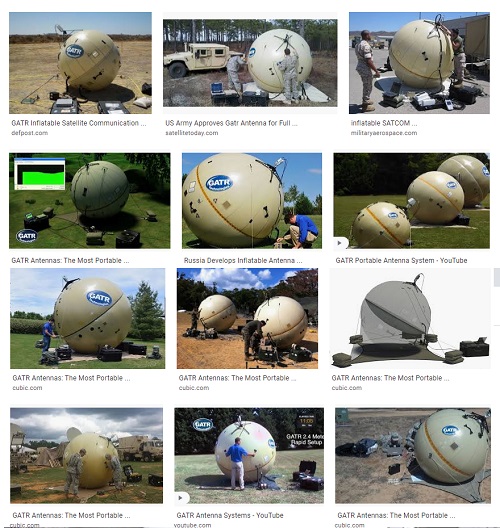

Finally, I wondered what a GATR antennas looked like when deployed.  Here is the result of a Google image search for GATR antennas:

...
