Antenna dimensions: Andrew 1.2m Class I and Class II

(Read 1684 times)
Amr Emam
Member
★★
Offline



Posts: 1
Egypt
Mar 16th, 2022 at 5:50am
Does anyone have the exact dimensions for 1.2 skyware antenna class l and class ll or Andrew?
Back to top
« Last Edit: Mar 30th, 2023 at 3:40pm by Admin1 »

IP Logged

Admin1
YaBB Admin
★★★★★
Offline



Posts: 1191
Reply #1 - Mar 30th, 2023 at 3:37pm

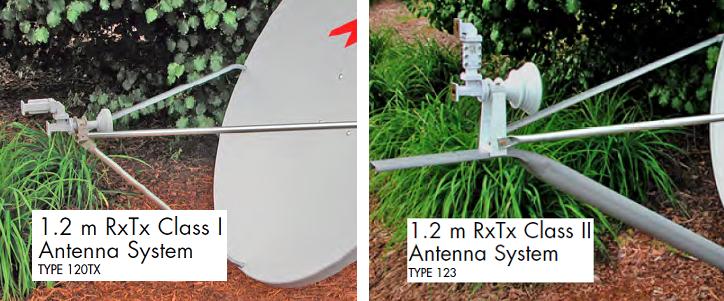

Here are images of two types of 1.2m Andrew Ku band antennas and feeds:
...
Both show normal cross-pol, linear, type OMTs.

I don't have the dimensions. Maybe someone has similar antennas and could measure. Take 4 measurements from top and bottom of the dish to top and bottom of the feed window.
Clearly identify which model of antenna reflector and feed that your measurements refer to.
