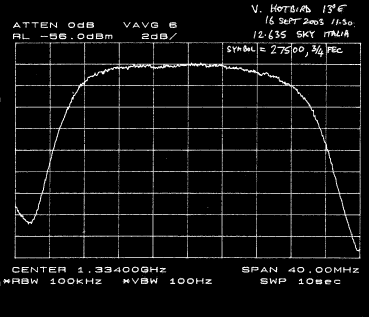

Spectrum plot of a DVB-S carrier

Symbol Rate= 27500 ksym/s

Bandwidth

-3 dB 26.4 MHz,
-3.8 dB 27.5 MHz,
-4 dB 27.93 MHz,
-6 dB 30.27 MHz,
-12 dB 34.53 MHz.

This DVB-S satellite carrier spectrum plot may be useful for your reference purposes.

Navigation back to: Symbol Rate for satellite internet outlink carrier

Ref data: South East UK, 1.8m west, az=12.8cm, Skyrelay RF head, LO=11.3 GHz, Hotbird 13E, SKY ITALIA, 12.635 GHz
